2 General Power Meter Functions
108 Keysight N1911A/1912A User’s Guide

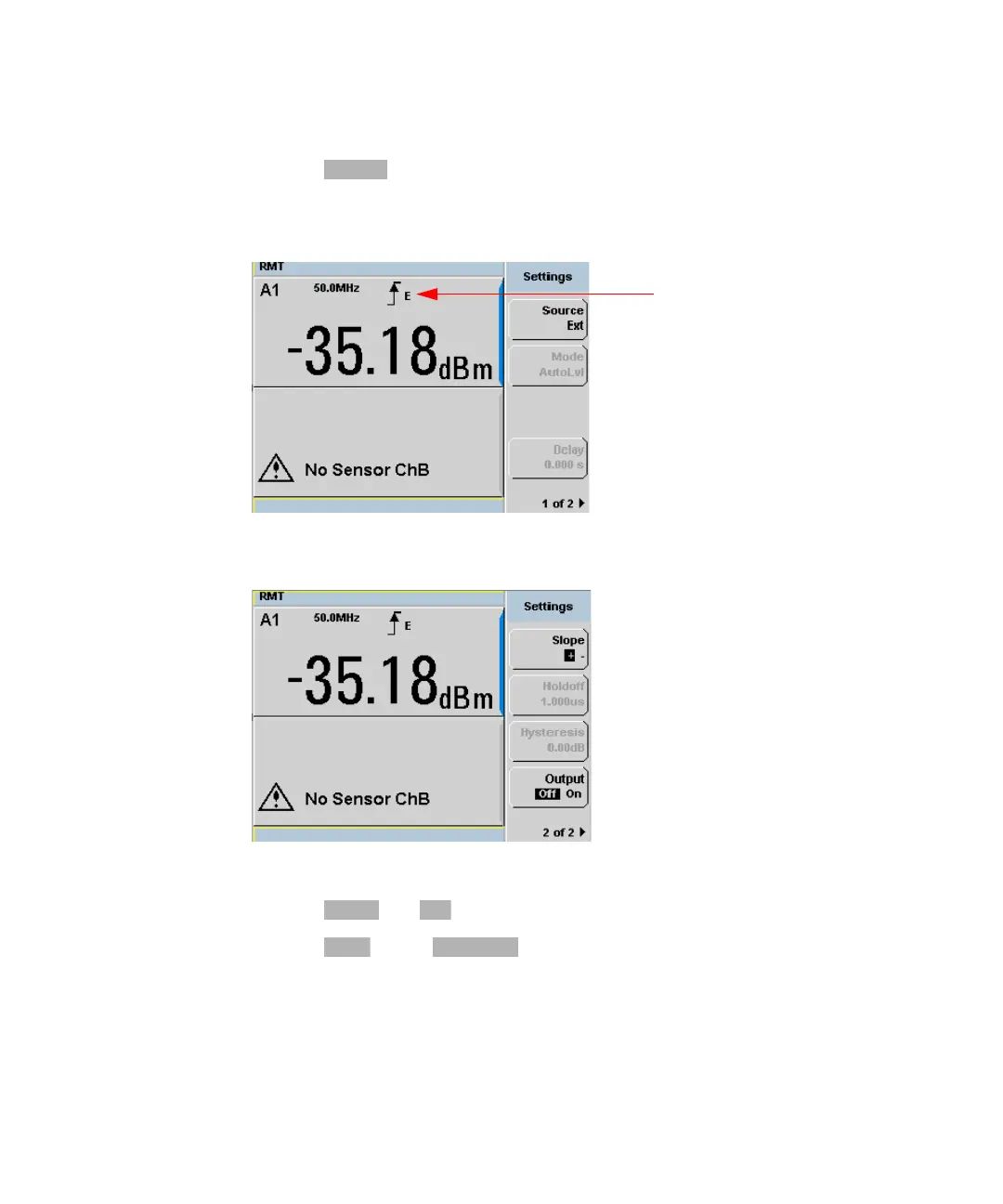

7 Press to configure the remaining trigger parameters. The trigger
Settings menu consists of two pages. Figure 2-46 shows page 1 and
Figure 2-47 shows page 2.
Figure 2-46 Trigger setting menu 1 of 2
Figure 2-47 Trigger setting menu 2 of 2
8 Press and will be automatically enabled.
9 Press , select to allow a TTL level high to be produced at the
rear panel TRIG OUT BNC port upon the meter completed a measurement.
Refer to the following note for details.
