2 General Power Meter Functions
88 Keysight N1911A/1912A User’s Guide
Procedure
– Press . The Channel Gate Setup screen is displayed.

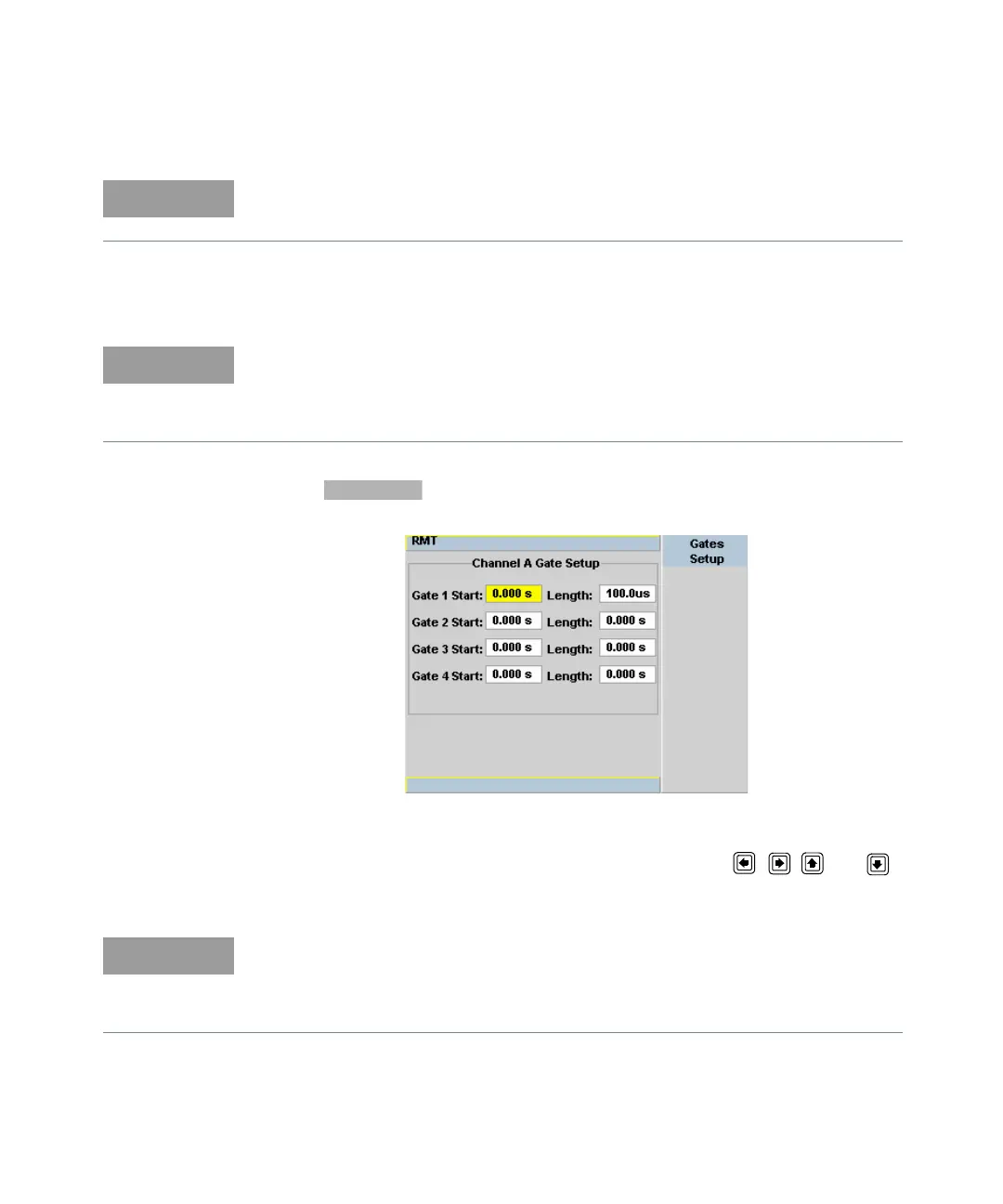

Figure 2-23 Gate Setup screen
1 Highlight the Gate Start you want to configure using the , , and
keys.
Figure 2-22 shows measurement results using this example of the gates
placement.
This procedure uses the Gates Setup under the Channel Setup menu.
Alternatively, you can use a more visual method, when in the Graphical Trace
Mode (Gate Control Menu), to set the channel’s Gate Control. (See “Setting the
Trace Display” on page 152).
The gate start time is relative to the trigger event. Positive values set a
measurement gate, to a maximum time of 1 second, after the trigger. Negative
time gate start values set a measurement gate, to a maximum time of 1 second,
before the trigger.
