Setting Offsets
Press . The Offsets Setup screen is displayed.

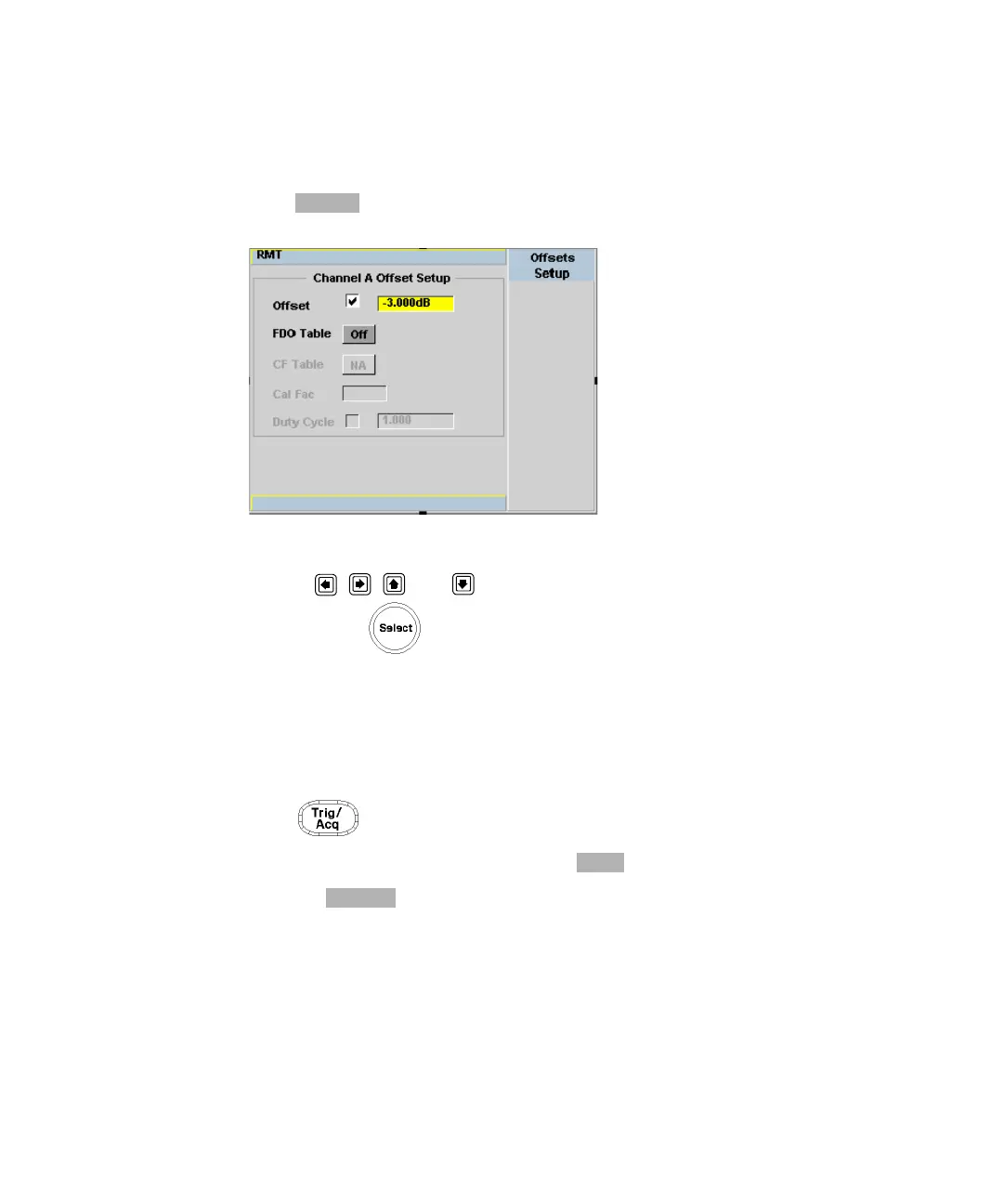

Figure 3-9 Channel offset display
Use the , , , and keys to highlight any parameters you want to
change. Press to configure the required settings. For further detail on
setting these, refer to the appropriate section.
Offset
: “Setting channel offsets” on page 68
FDO Table
: “Setting frequency dependent offsets” on page 71
Trigger Setup
Press . The Trigger menu is displayed.
The trigger status is displayed below the label in the Trigger menu.
Press the softkey and add more accuracy to the remaining trigger
parameters, for example, hold-off and hysteresis, to help you achieve a stable and
reliable trigger. Hence, this ensures that the gates you have set up are capturing
the required signal information. See “Setting the Trigger” on page 96 for further
information.
