3 Using P-Series Power Sensor
156 Keysight N1911A/1912A User’s Guide
After you have completed this initial set up, you can, if required, return to the
following setup to improve your measurement results:
The Channel Setup to configure any averaging and offsets.
The Trigger setup to configure any additional setting there.
The Meas Setup to configure any additional setting there.
Gate Control in a Single Enlarged Window
When you initially display a Single Enlarged Window, the Gate Control menu is
available. Setting the gate features are described in greater detail in “Setting
Measurement Channel Gates” on page 87. However, the following sections are to
give you an overview of the control and their impact on the displayed results.

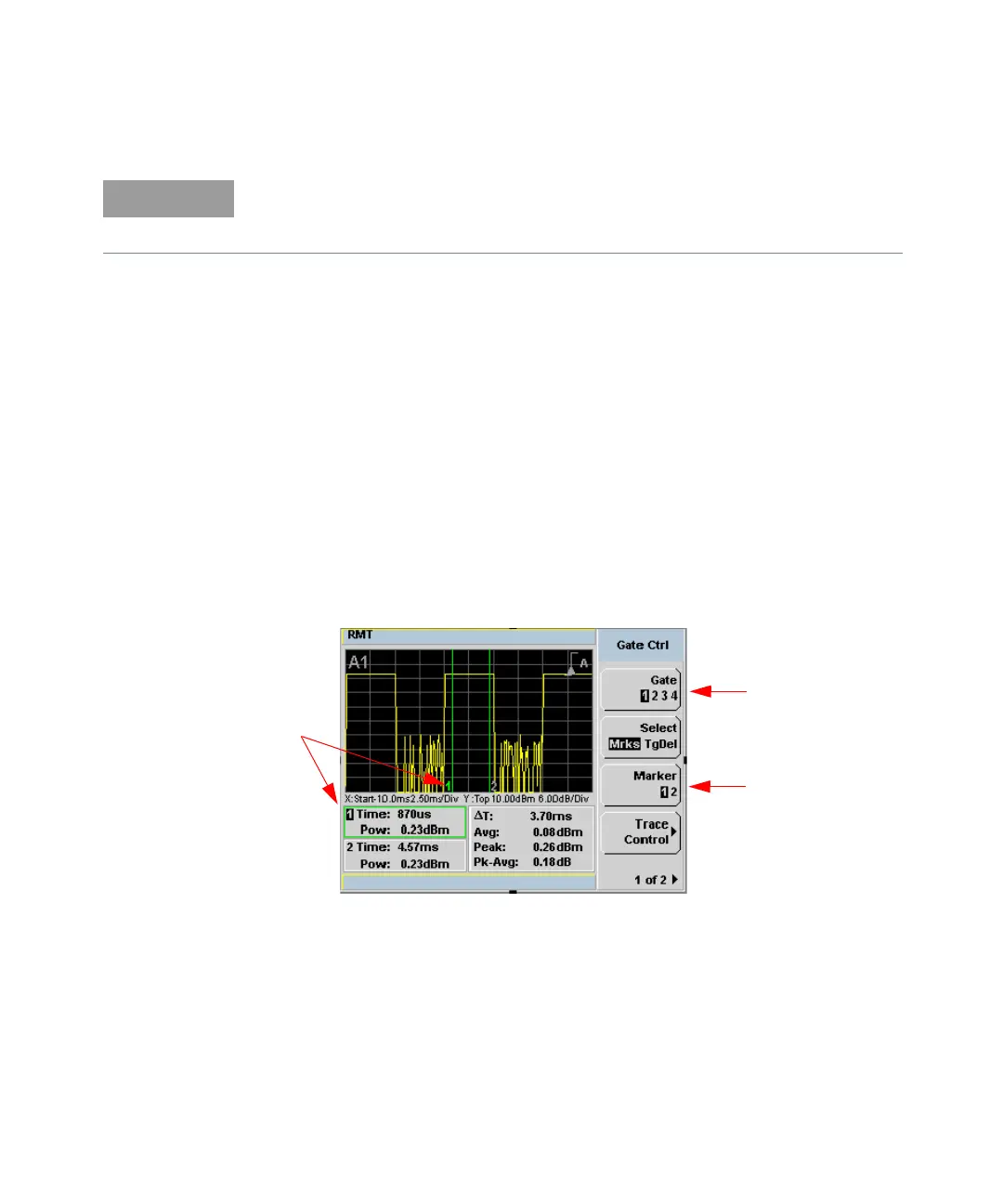

Figure 3-4 Trace display with gate control menu
If the bandwidth of a modulated signal is unknown, you may discover that
during the set up process, a power sensor of lesser or greater bandwidth is
required.
Active marker
Gate 1 active
Marker 1 active
