4 Using E9320 E-Series Power Sensors
180 Keysight N1911A/1912A User’s Guide
Gate Control Press
to display the Gate Ctrl menu. Setting the gate features are
described in greater details in “Gate Control in a Single Enlarged Window” on
page 176”.
Viewing the results in a full screen window
Use the key to display the trace in a full screen window display. This
provides a better resolution on the display. You can press or
to display the results as set in Single Enlarged Window mode. The
current settings of the X and Y scale are displayed on the reporting line above the
results. You need to toggle the key to allow the softkeys to be displayed.

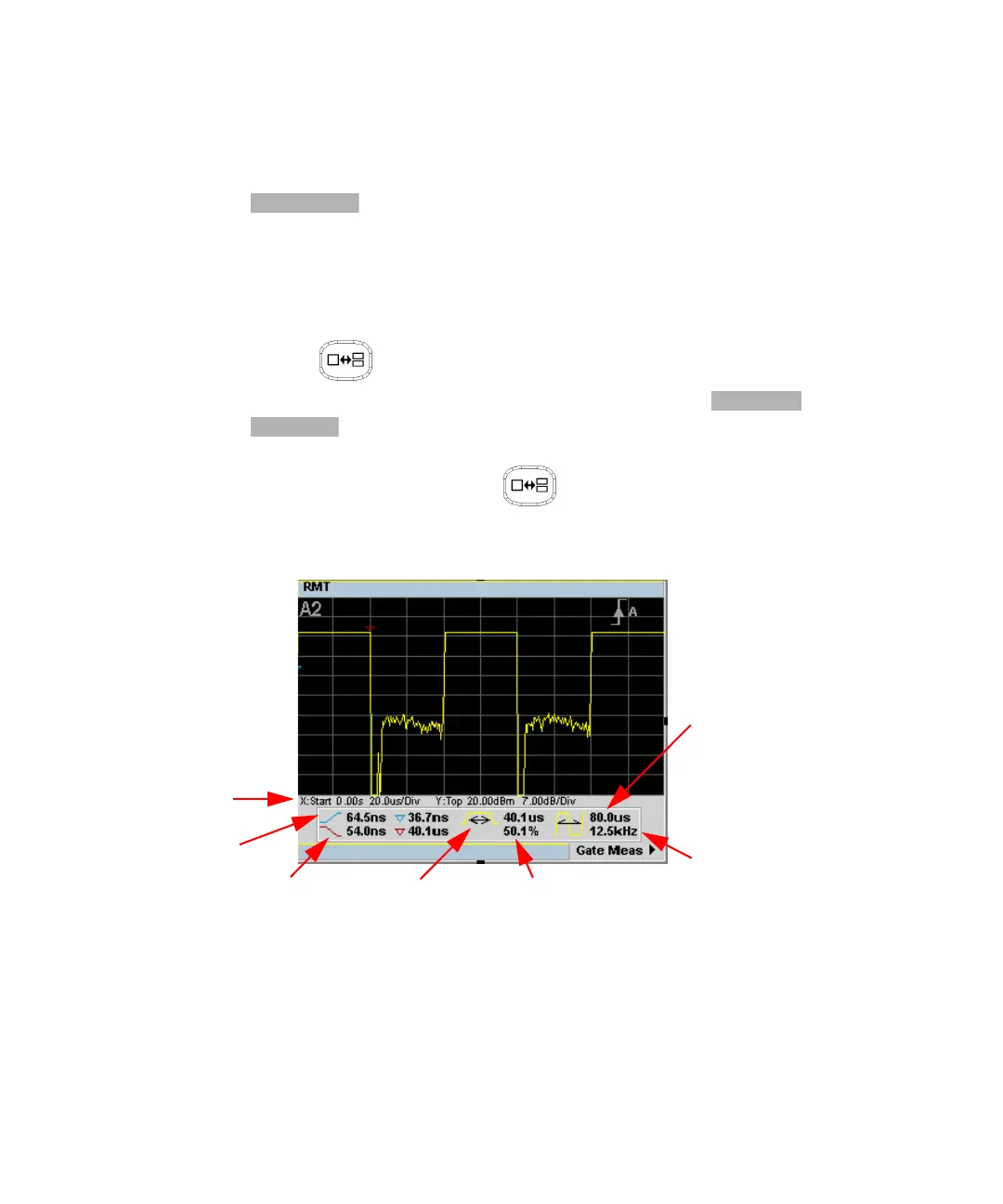

Figure 4-10 Trace display in full screen
Scale settings
Rising edge
Falling edge
Pulse width
Duty cycle
Pulse period
Pulse repetitive frequency
