1Introduction
38 Keysight N1911A/1912A User’s Guide
The Display Layout

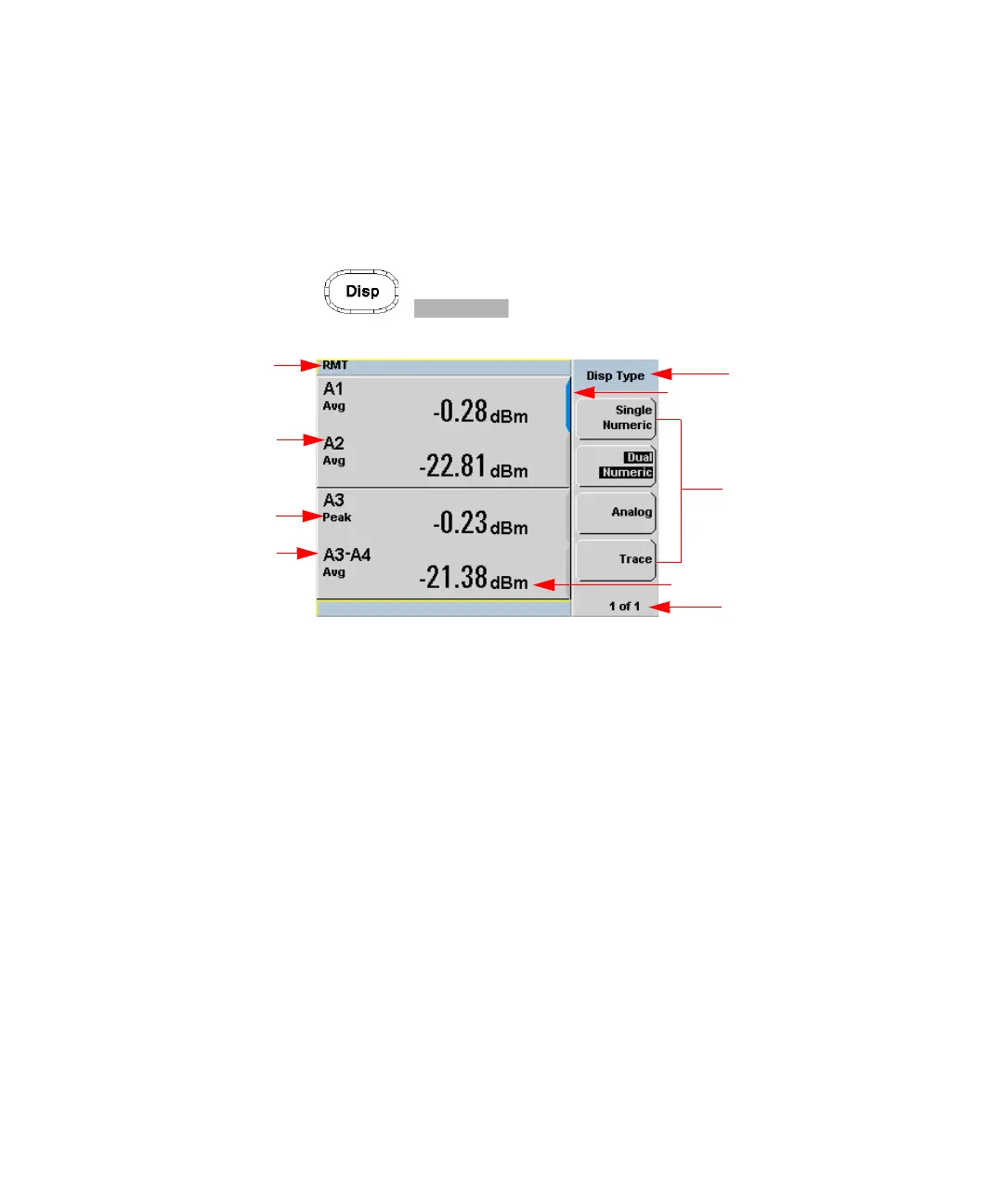

Figure 1-1 shows the display layout when two windows are configured in dual
numeric mode.
Pressing , the other display formats are available.
Figure 1-1 Dual numeric display
1 The status reporting line displays messages and the control status of the
power meter. For example, the status can be either RMT (remote, GPIB, USB
or LAN operation) or LCL (local, front panel operation).
The message fields indicate ERR for any error conditions that occur or
informing you to Please Zero the power sensor.
2 The blue highlight on the right hand side of the window shows it is the
currently selected measurement display line. This measurement line is the
Upper Window/Upper Measurement.
3 The measured channel is shown. With a P-Series or an E-Series E9320 power
sensor connected, and channel in trigger mode, the associated gate number is
shown.
4 The associated measurement type is shown below the channel and gate
number.
5 This displays the measurement units, either dBm, dB, Watts, or percent (%).
Disp Type
1
3
4
6
9
2
8
5
7
