Setting the Pulse Reference Levels
– Press and proceed to the second page of Sys/Inputs menu by
pressing the softkey.
– Press softkey to display the Measurement Configuration screen.
– Press the softkey to select the desired channel for a dual channel
power meter (N1912A).

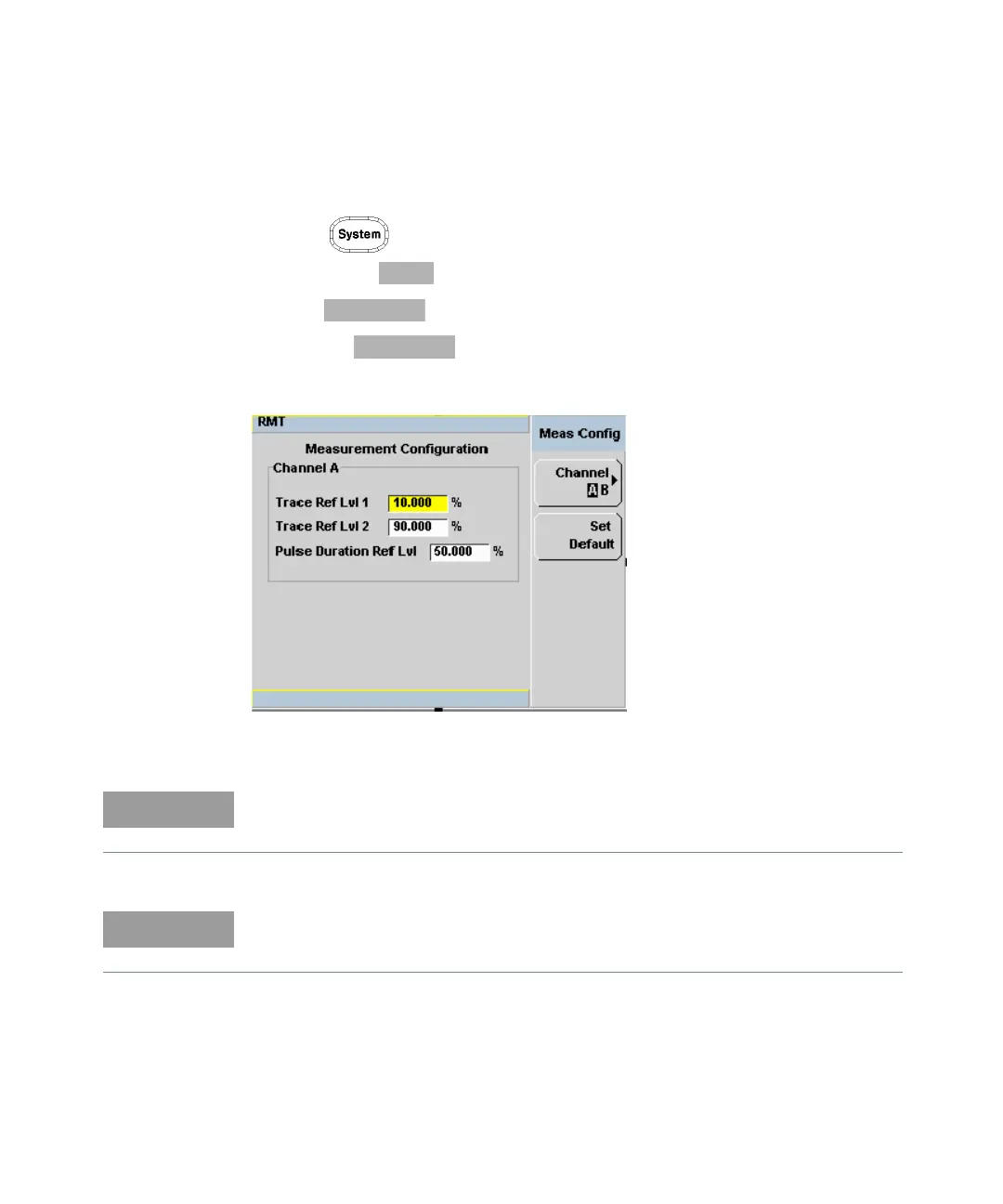

Figure 2-4 Measurement configuration screen
Trace Ref Lvl 1 and Trace Ref Lvl 2 are used in calculation of transition durations
and occurrences.
Pulse Duration Ref Lvl allows pulse duration measurements between
non-standard reference levels.
