6 Press to display the Frequency pop-up window. Use the numeric
keypad to enter the required value in the Frequency pop-up window.
7 To confirm your choice, press the appropriate unit softkey.
8 Connect the power sensor to the signal to be measured.
9 The corrected measurement result is now displayed.

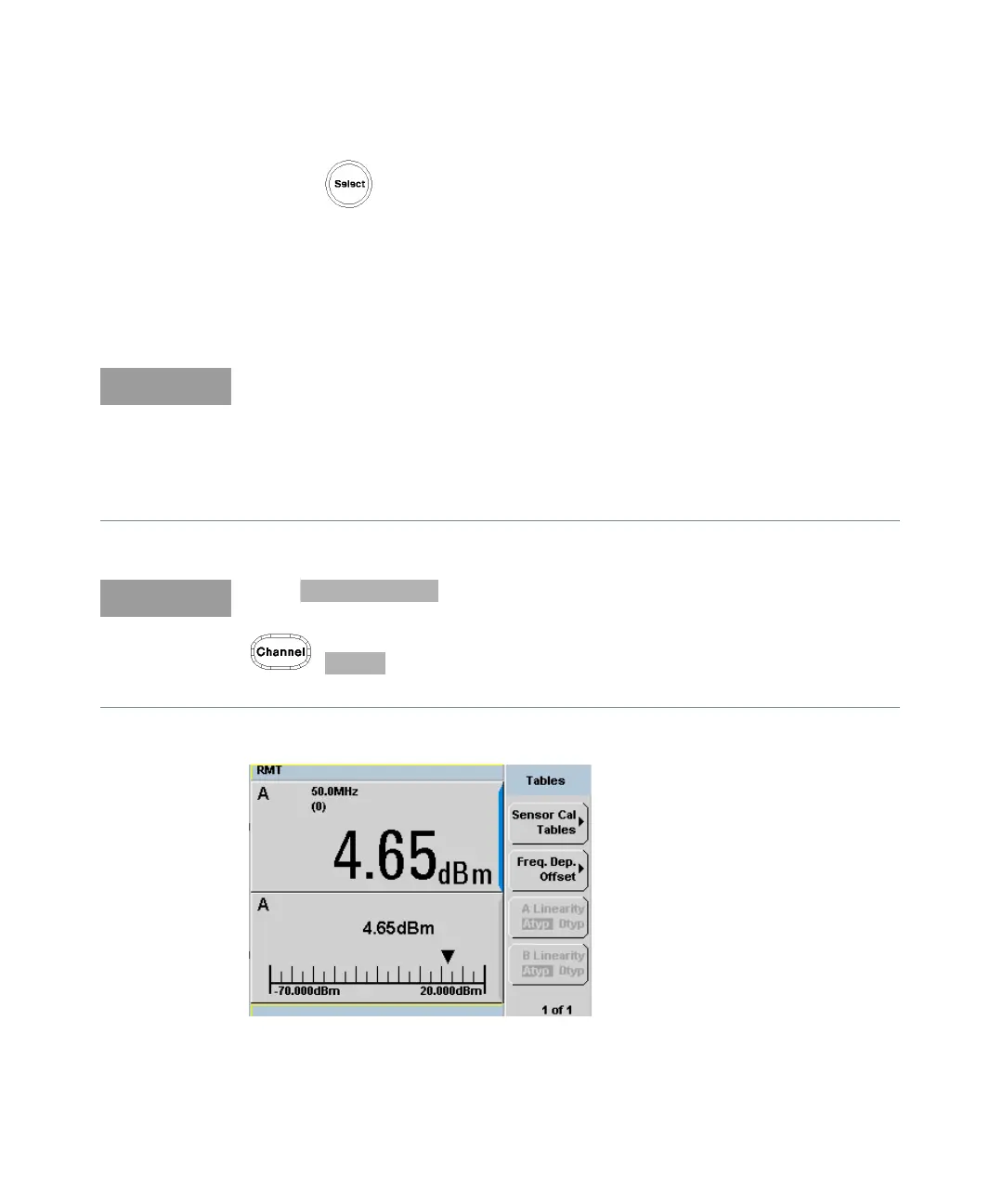

Figure 8-10 Frequency/calibration table display
If the measurement frequency does not correspond directly to a frequency in the
sensor calibration table, the power meter calculates the calibration factor using
linear interpolation.
If you enter a frequency outside the frequency range defined in the sensor
calibration table, the power meter uses the highest or lowest frequency point in
the sensor calibration table to set the calibration factor.
When display mode is chosen, the frequency you entered and
the sensor table identifier is displayed in the upper window. Also, pressing
, displays the frequency you entered and calibration factor for
each channel derived from the selected sensor tables.
