Introduction 1
Keysight N1911A/1912A User’s Guide 41

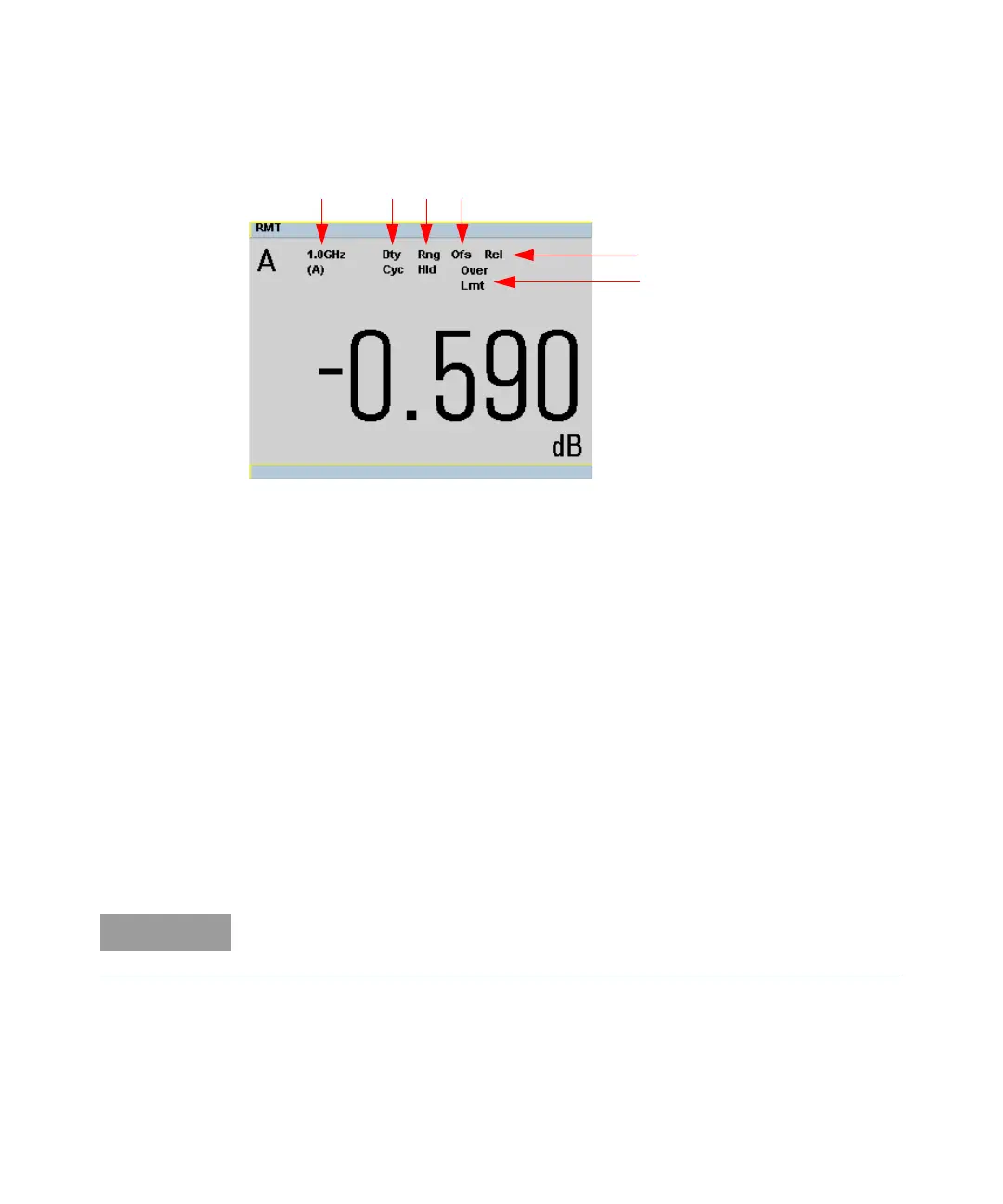

Figure 1-3 Full screen numeric display
16 Figure 1-3 shows a single numeric full screen displaying a relative result.
This field displays Rel if relative mode is on.
17 This field indicates the measurement result is beyond the configured upper or
lower limit. If the measurement is within the limits this field is empty. If the
measurement result is less than the minimum limit set, Undr Lmt is displayed.
If the measurement result is more than the maximum limit set, Over Lmt is
displayed.
18 This field displays Ofs if an offset is set.
19 This field displays Rng Hld if a range is selected.
20 This field displays Dty Cyc if a duty cycle is set.
21 The information in this field is displayed on two lines and depends on the
sensor type, sensor calibration table, frequency dependent offset table
currently selected, and the measurement frequency.
The following trace displays are only available when a P-Series or an E-Series
E9320 power sensor is connected.
