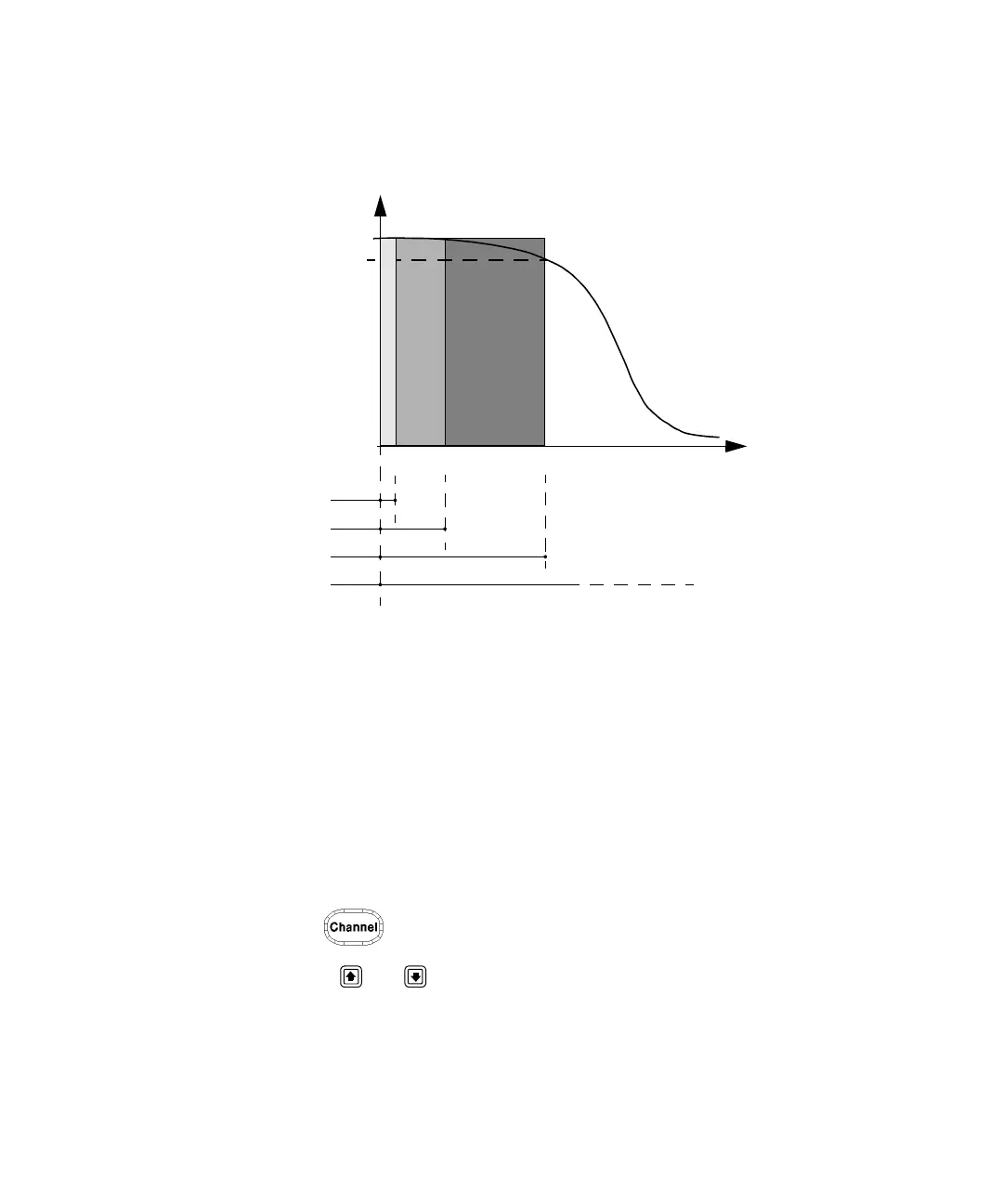

Figure 2-20 Bandwidth filter shapes
When video bandwidth is set to Off, it removes all digital signal conditioning. This
provides approximately 3 dB roll off at the maximum sensor’s bandwidth and is
best suited for accurate trace capture, minimizing overshoot, and removing any
ringing effects caused by the sharp cut-off filters used in the Low, Med and High
settings. Figure 2-20 shows the filter shapes associated with the P-Series
wideband power sensors.
Procedure
Set the video bandwidth as follows:
1 Press . On dual channel meters select the required channel.
2 Use the and keys to select the Video B/W setting field.
Amplitude P-Series sensors
Frequency
Approx
-3.5 dB
0
5 MHz 15 MHz
30 MHz
Low
Med
High
Off
Meter B/W
setting
To Next Page
