Procedure
1 Press softkey to configure a trigger.
2 Select either or .
– is a single shot mode. After triggering, the measurement is
halted, the symbol is displayed. You can start another measurement by
pressing the key.
– is a continuos trigger mode. The symbol or is displayed.
3 Press to configure the remaining trigger parameters. The trigger
Settings menu have two pages. Figure 2-37 shows page one and Figure 2-40
shows page two.

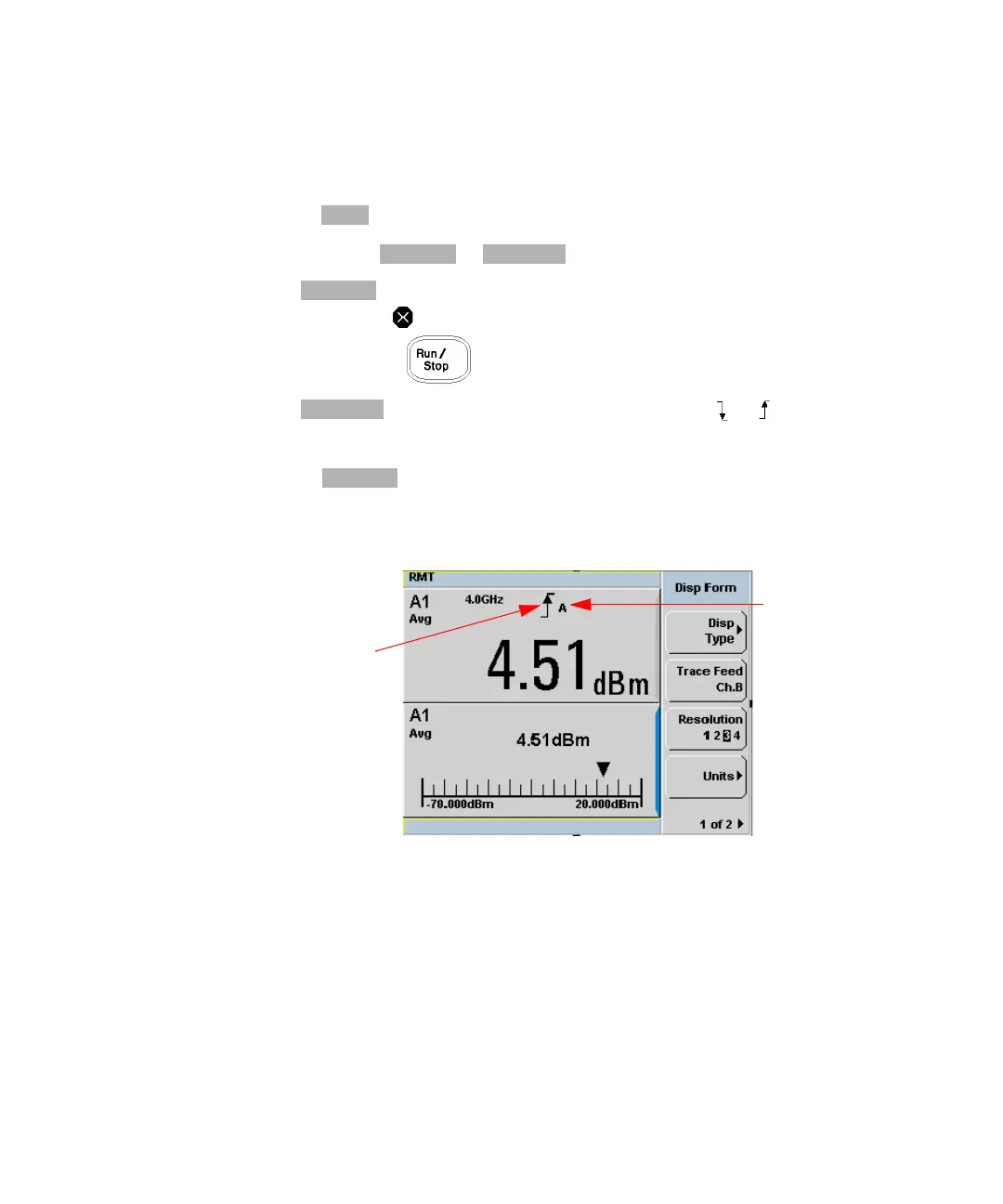

Figure 2-37 Trigger Setting Menu 1 of 2
To help you quickly check the triggering setup, the current settings for all the
trigger parameters are shown with their respective softkey labels.
Rising edge source
Channel A is
trigger source
To Next Page
