Using P-Series Power Sensor 3
Keysight N1911A/1912A User’s Guide 155
– Use the , , or keys to select a measurement window. Choose the
type of display you require from the menu.
Step 5. Expanding the trace display
Expanding the trace to display a Single Enlarged Window provides a more
detailed visual representation of the signal of interest and display of the measured
results. Figure 3-3 is an example of this display. This display type also provides a
visual method of setting up the gate, trigger delay, and trace controls.
Use the key to configure the display from two rectangular windows to a
single enlarged window, or a full screen display by pressing repeatedly. The
display style is applied to the currently highlighted window.

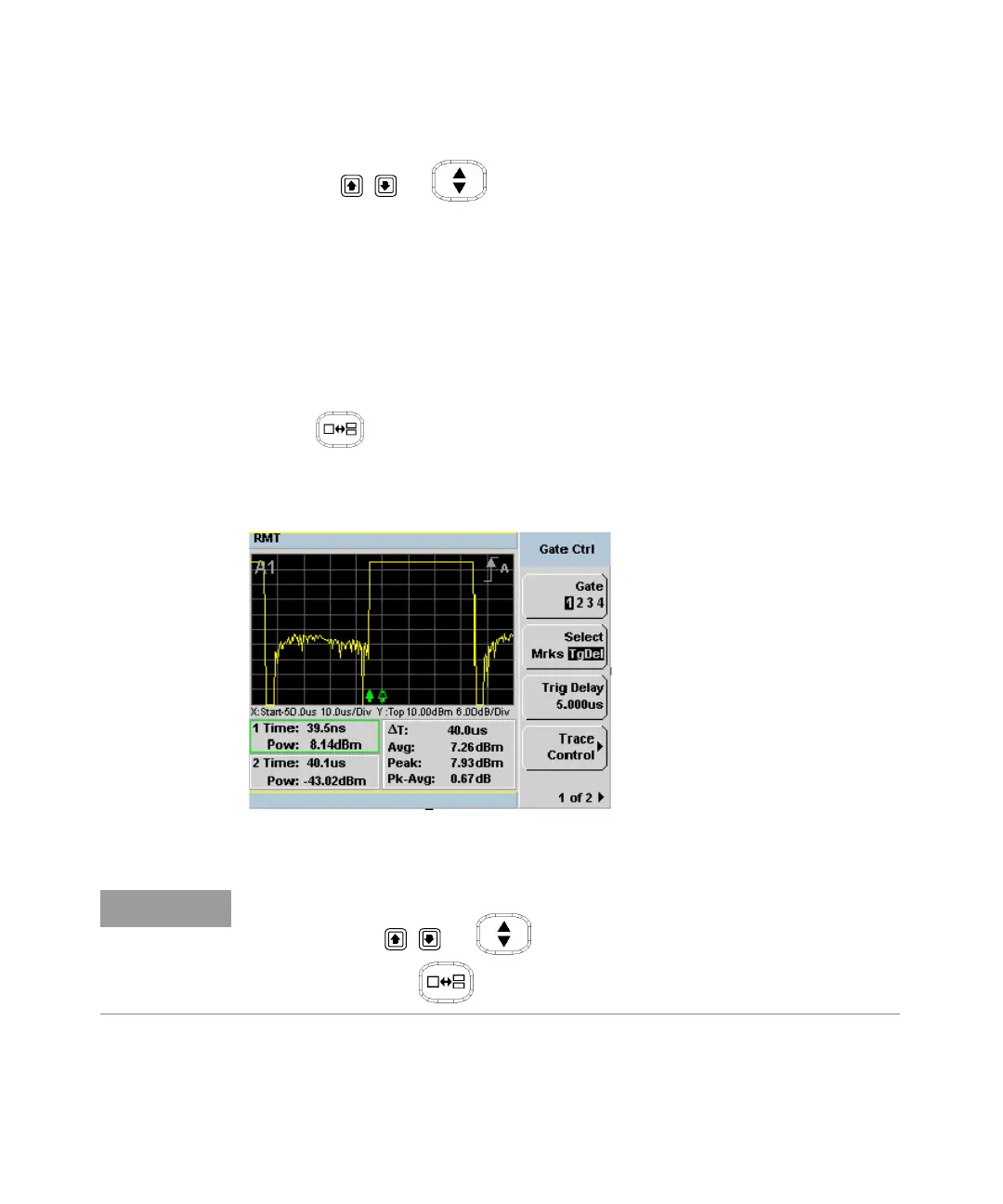

Figure 3-3 Trace display in single enlarged window
When you alter a parameter in another menu, you are returned to a two window
display. Use the , , or keys to highlight the trace measurement
window and use the key to enlarge the display.
