Using E9320 E-Series Power Sensors 4
Keysight N1911A/1912A User’s Guide 179

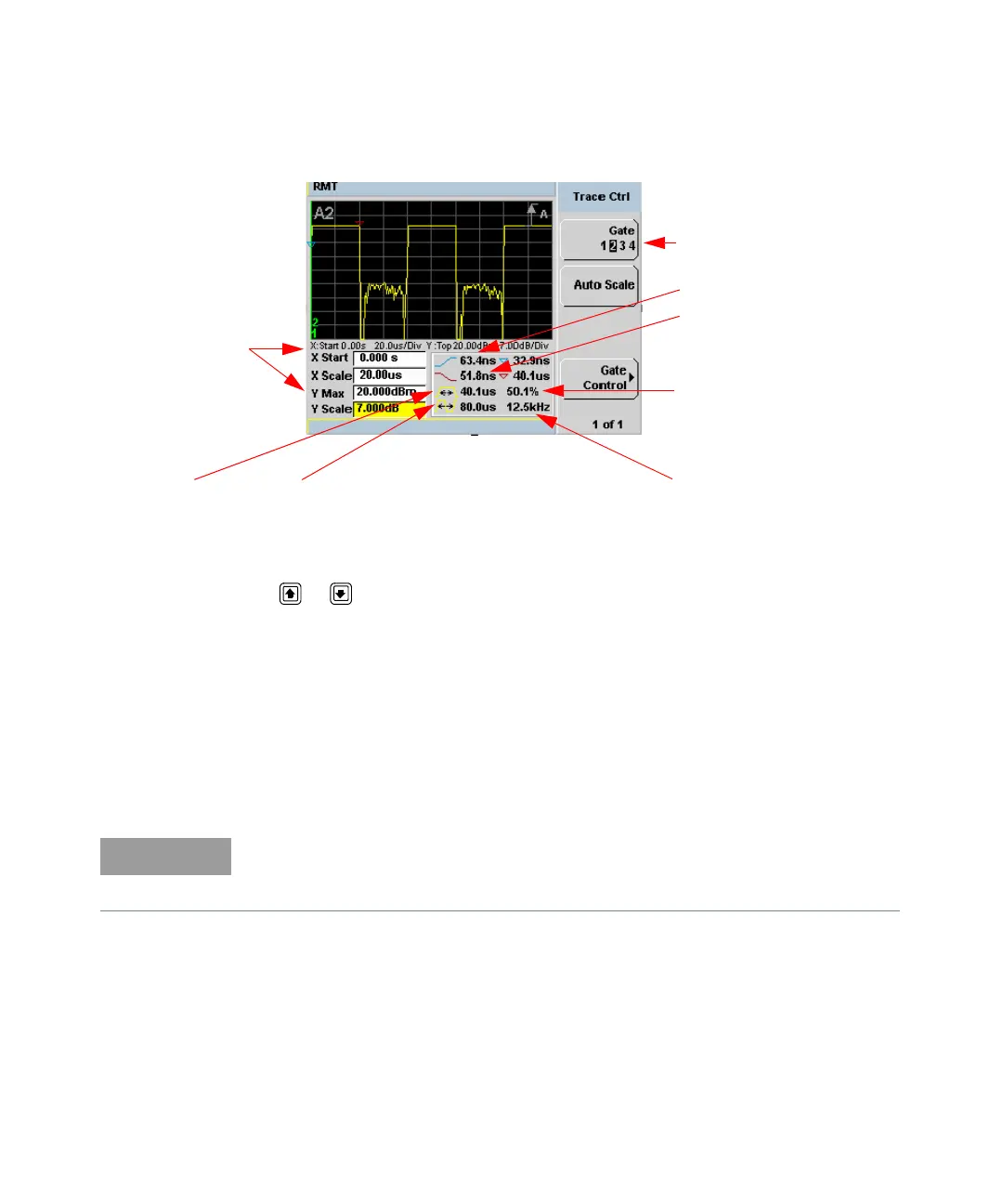

Figure 4-9 Trace display with trace control menu
The fields on the lower left of the screen are the X and Y trace setup fields. Using
the or keys you can highlight the item and change its value. (See
Figure 4-9)
The table on the lower right of the screen shows the 8 automatic time
measurements performed on the first complete captured pulse after the trigger.
The 8 measurements are rise time, fall time, time to positive occurrence, time to
negative occurrence, pulse width, pulse period (pulse repetitive interval), pulse
repetitive frequency and duty cycle.
The current settings of the X and Y scale are displayed on the reporting line above
both tables.
Trace settings
Pulse width Pulse period
Pulse repetitive frequency
Duty cycle
Falling edge
Rising edge
Gate 2 active
If you want to view the trace in linear mode, the Trace Setup is the only location
where you can change the Y-scale units from
dBm to Watts; otherwise the
default unit is in logarithmic.
