Keysight N1911A

4 Using E9320 E-Series Power Sensors
168 Keysight N1911A/1912A User’s Guide
Power Meter Configuration
The P Series power meters automatically recognize an E-Series E9320 power
sensor when it is connected. The sensor calibration data, characterizing the
sensor output versus input power, frequency, and temperature, is automatically
read by the power meter.
Default Channel Setup
When an E-Series E9320 power sensor is connected the following Channel Setup
is automatically configured. Carrying out a Preset returns the power meter to this
configuration.

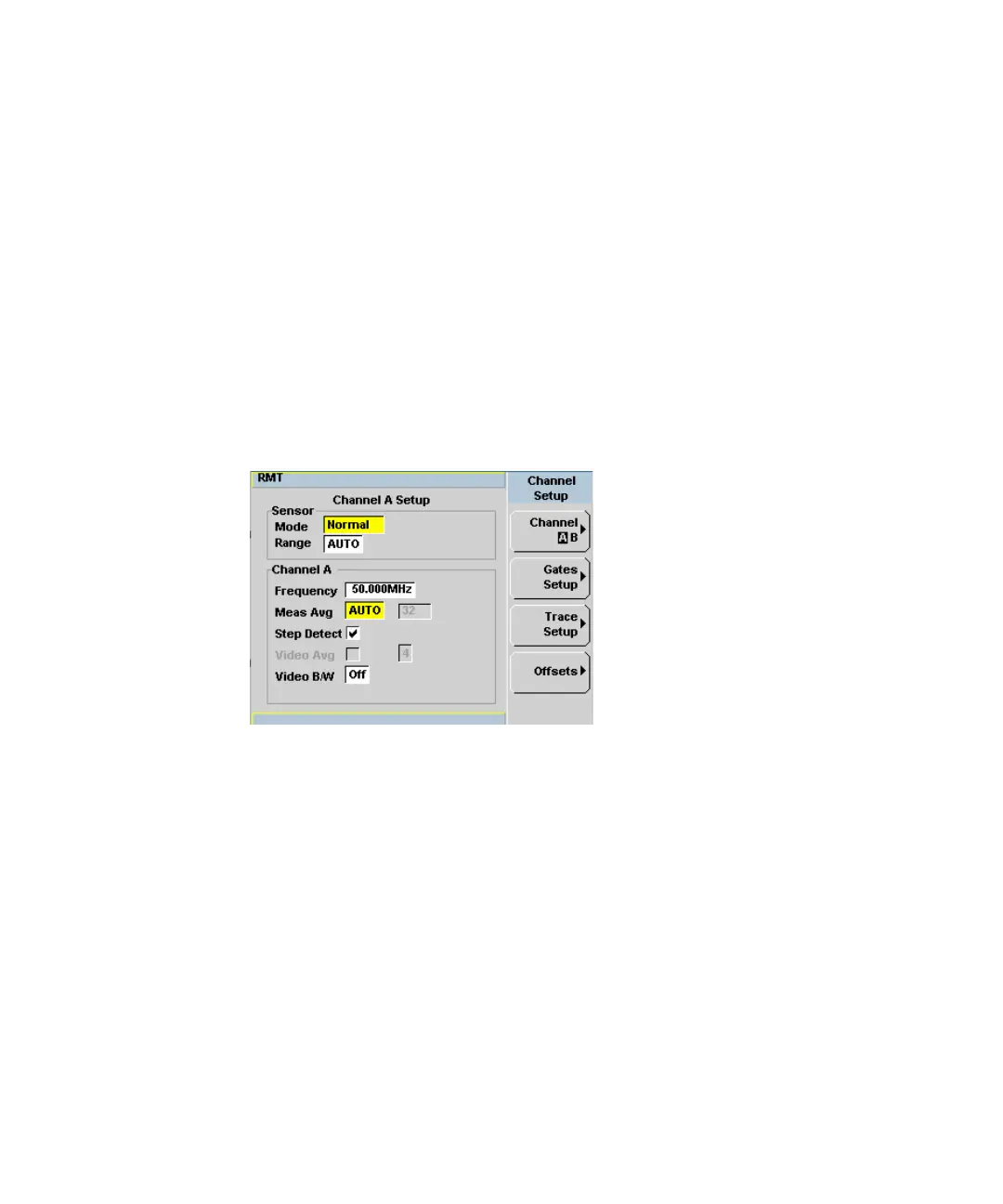

Figure 4-2 E–Series E9320 power sensor default channel setup
