26 Keysight N9038A MXE Service Guide
Overview
ESD Information
ESD Information
Protection from Electrostatic Discharge
Electrostatic discharge (ESD) can damage or destroy electronic components.
All work on electronic assemblies should be performed at a static-safe
workstation. Figure 1-1 shows an example of a static-safe workstation using
two types of ESD protection:
— Conductive table-mat and wrist-strap combination.
— Conductive floor-mat and heel-strap combination.
Both types, when used together, provide a significant level of ESD protection.
Of the two, only the table-mat and wrist-strap combination provides adequate
ESD protection when used alone. To ensure user safety, the static-safe
accessories must provide at least 1 megohm of isolation from ground.

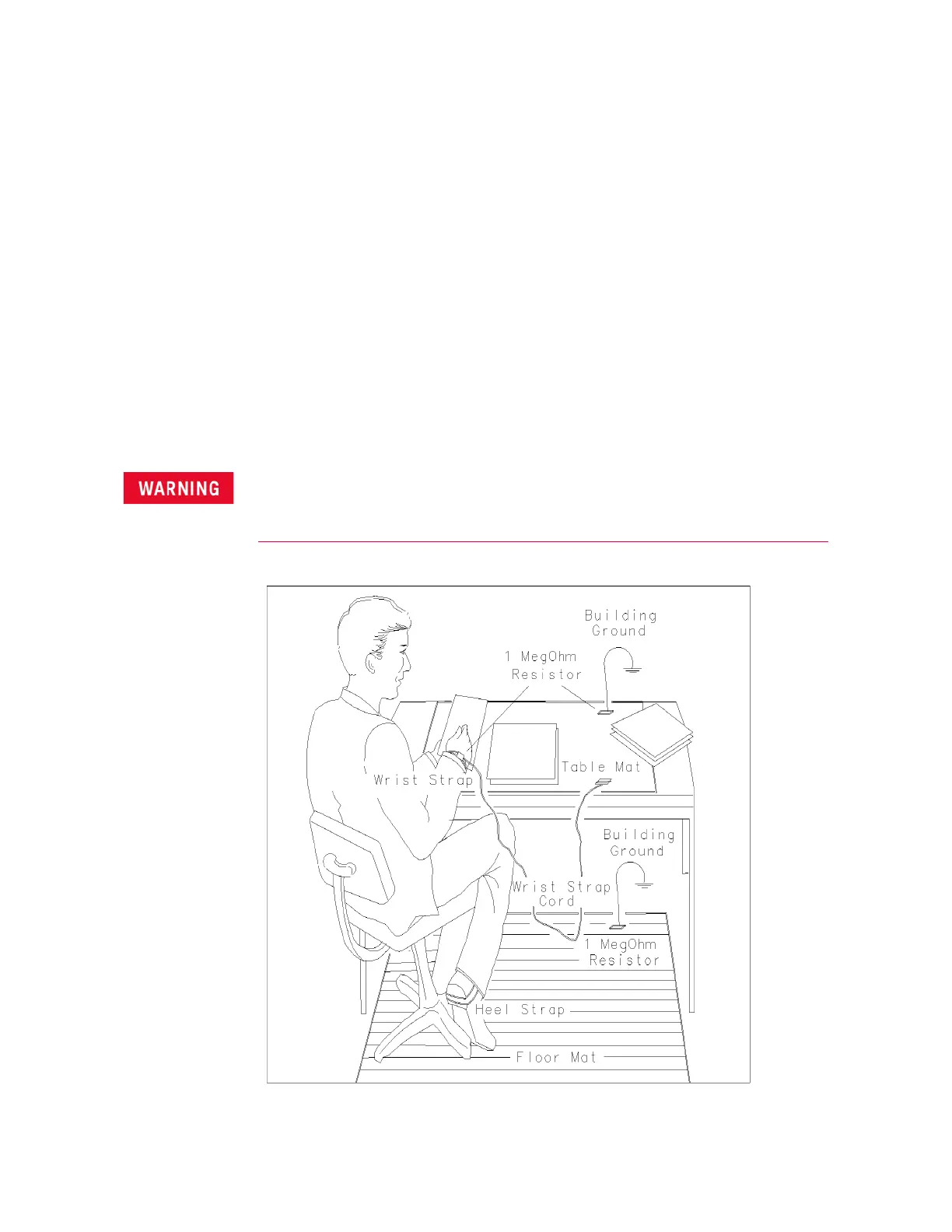

Figure 1-1 Example of a Static-Safe Workstation
These techniques for a static-safe workstation should not be used when working on circuitry
with a voltage potential greater than 500 volts.
