Keysight N9038A Service Guide

600 Keysight N9038A MXE Service Guide
Assembly Replacement Procedures
Disk Drive
Disk Drive Interconnect
Removal
1. Remove the A5 Disk Drive assembly for the instrument. Refer to the “Disk
Drive” removal procedure.
2. Remove the A4 CPU assembly from the instrument. Refer to the “CPU
Assembly” removal procedure.
3. Refer to Figure 18-52. Remove the A4 CPU assembly cover (1) by first
removing the 19 flat-head screws (2) (0515-1227) and 3 pan-head screws
(3) (0515-0372).

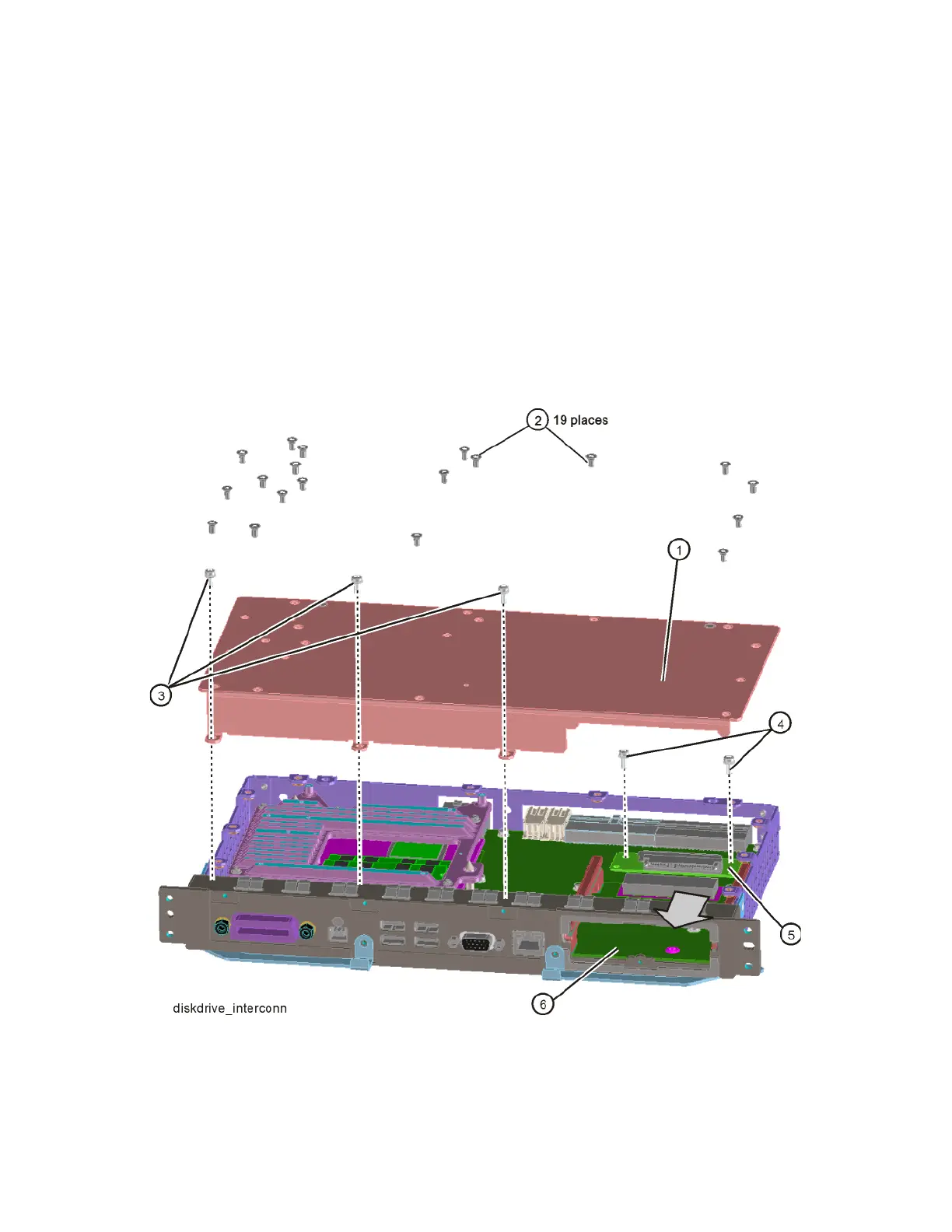

Figure 18-52 A4A1 Disk Drive Interconnect Board Removal
