EMI Average Detector Accuracy

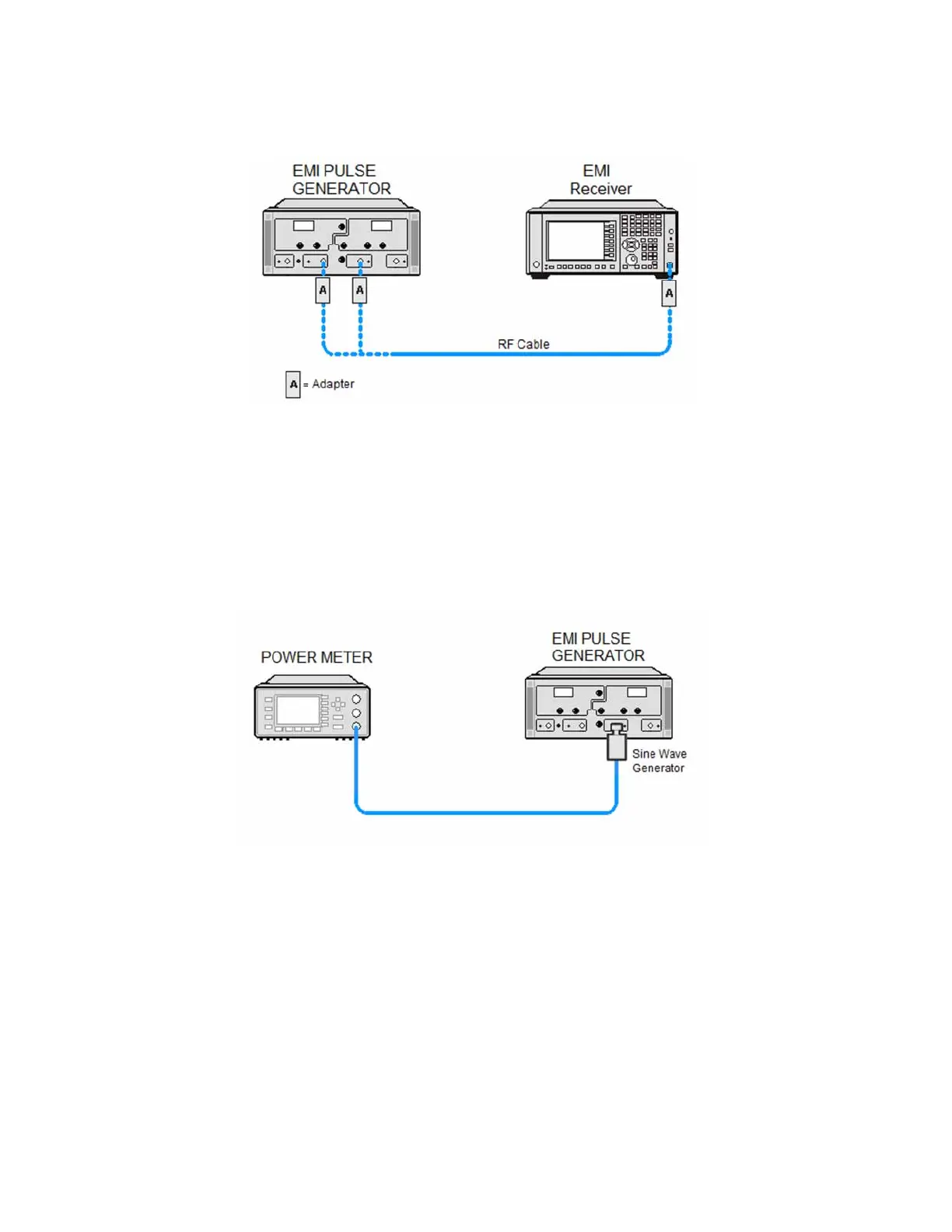

Figure 22-14 Typical Equipment Setup
Sine Wave Generator Characterization
1. Zero and calibrate the power meter.
2. Connect the power meter to the Output Sine Wave Generator of the IGUU
2916 EMI pulse generator as shown in Figure 22-15.
Figure 22-15 Sine Wave Generator Characterization
3. Set the IGUU 2916 EMI pulse generator to output a 100 kHz Sine Wave
signal.
4. After allowing the power meter to settle, record the reading in Table 22-47
under the Power Meter column.
5. Set the IGUU 2916 EMI pulse generator to output a 10 MHz Sine Wave
signal.
6. After allowing the power meter to settle, record the reading in Table 22-50
under the Power Meter column.
7. Set the IGUU 2916 EMI pulse generator to output a 100 MHz Sine Wave
signal.
