Keysight N9038A MXE Service Guide 613
Assembly Replacement Procedures
W35 Removal
W35 Removal
1. Refer to Figure 18-60. To remove cable W35 pinch the retainer clips on
both ends of the cable and slide the retainers away from the connections
as shown in Figure 18-61.
2. Replace W35 by pressing into place until the retainers click into place.

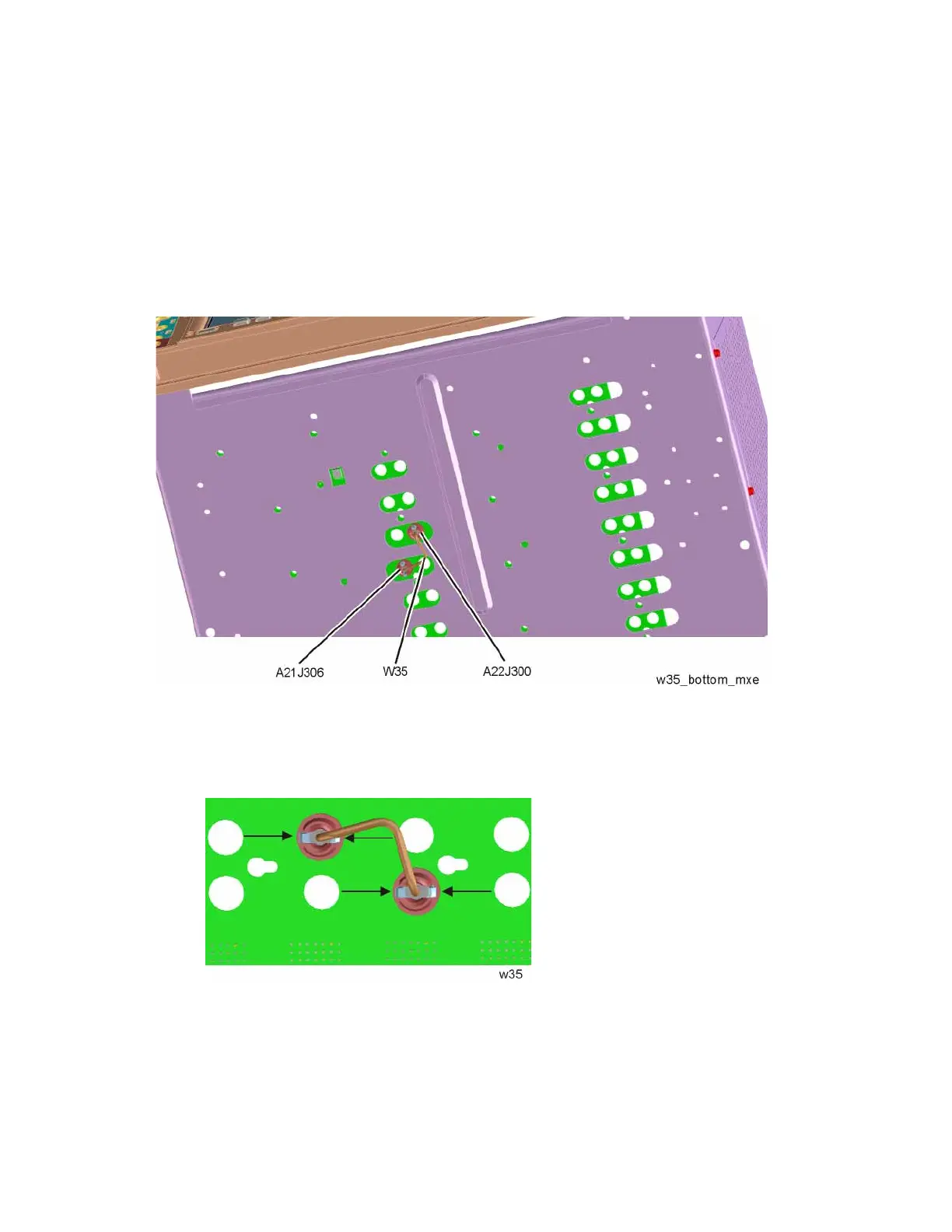

Figure 18-60 W35 Location
Figure 18-61 W35 Removal
