602 Keysight N9038A MXE Service Guide
Assembly Replacement Procedures
AIF/DIF Assembly
AIF/DIF Assembly
Removal
1. Remove the instrument outer case. Refer to the Instrument Outer Case
removal procedure.
2. Remove the rear panel. Refer to the Rear Panel removal procedure.
3. Refer to Figure 18-53. Remove cable W15, W17, W20, and W23 from the
bottom of the DIF assembly.

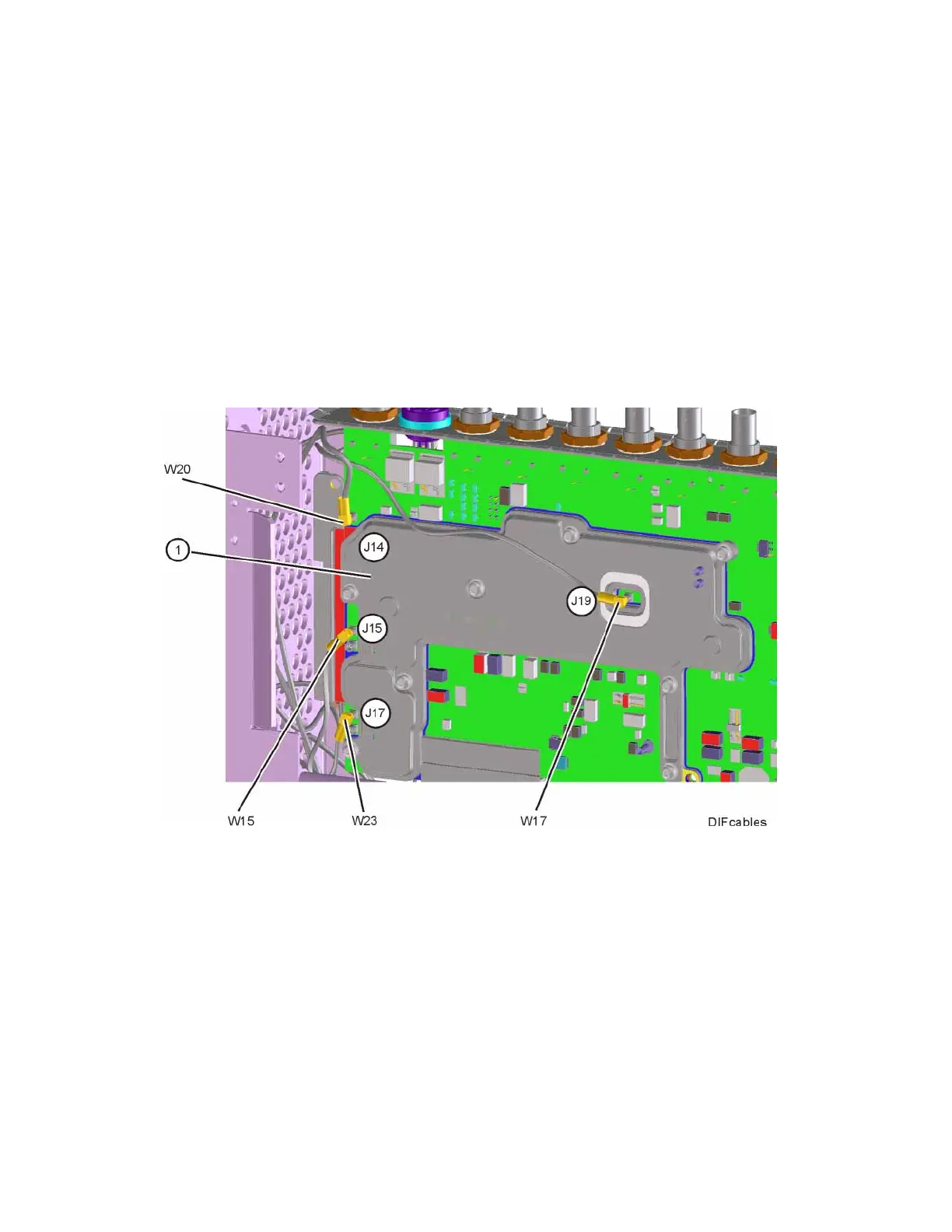

Figure 18-53 DIF Cables
4. Refer to Figure 18-54. Pull the AIF/DIF assembly part way out of the
chassis. Remove cables W16, W17, and W19 from the AIF assembly.
