682 Keysight N9038A MXE Service Guide
Tests
Amplitude Accuracy at 50 MHz

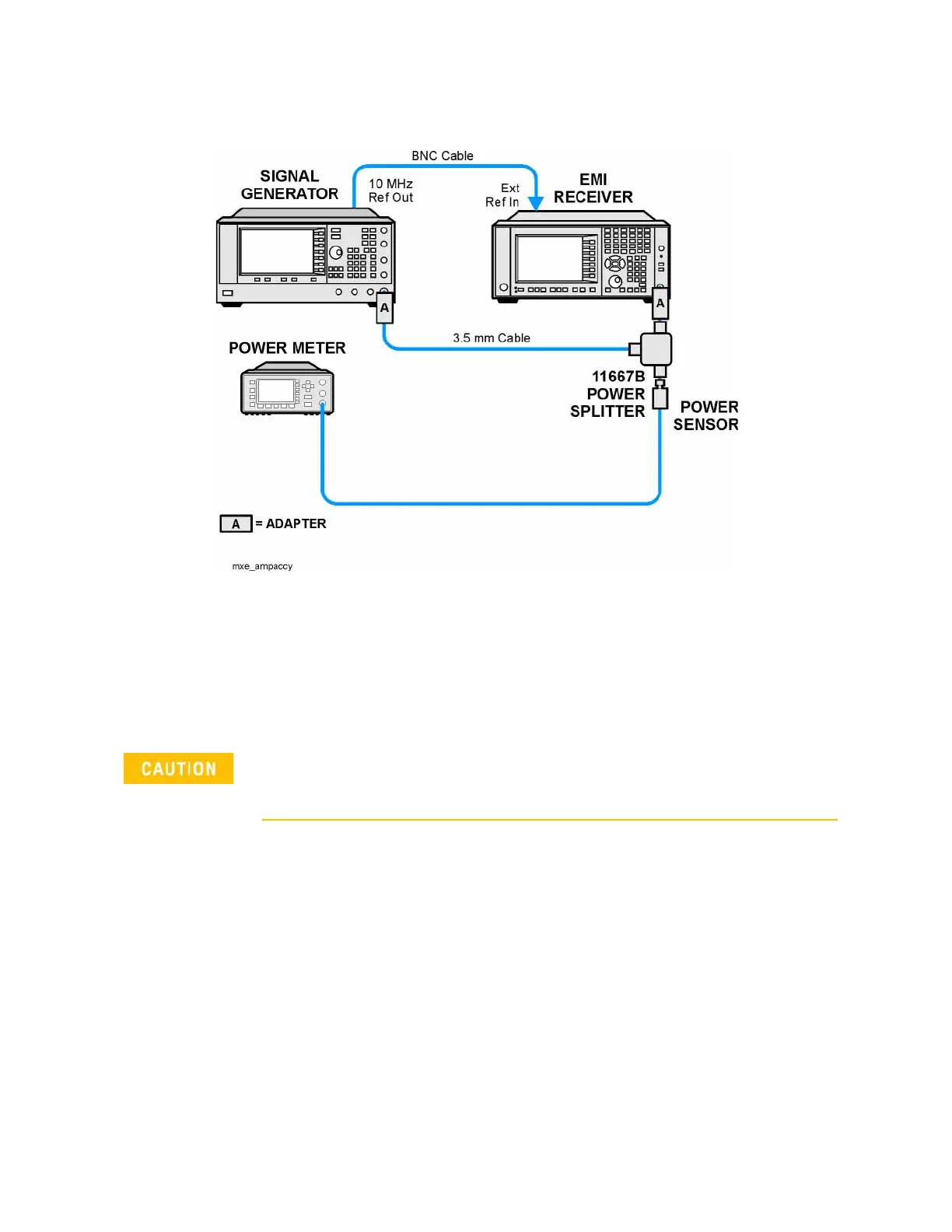

Figure 22-4 Absolute Amplitude Accuracy Test Setup
Procedure
1. Zero and calibrate the power meter.
2. Configure equipment as shown in Figure 22-4, with the power splitter
connected directly to the receiver RF Input with an adapter when needed.
RF Input 1
3. If the auto alignment for the receiver has not been performed within the
past 24 hours, press System, Alignments, Align Now, All to perform the
auto alignment routine.
4. On the signal generator, press PRESET, then set the controls as follows:
FREQUENCY, 50, MHz
Power Level, −4, dBm
RF On
5. Select RF Input 1 on the receiver by pressing Input/Output, RF Input, RF
Input Port, RF Input.
6. Preset the receiver by pressing Mode, Spectrum Analyzer, Mode Preset.
To minimize stress on the test equipment connections, support the power sensor.
