Keysight N9038A MXE Service Guide 633
Assembly Replacement Procedures
Front Frame Assembly
Front Frame Assembly Components - CCFL Backlight

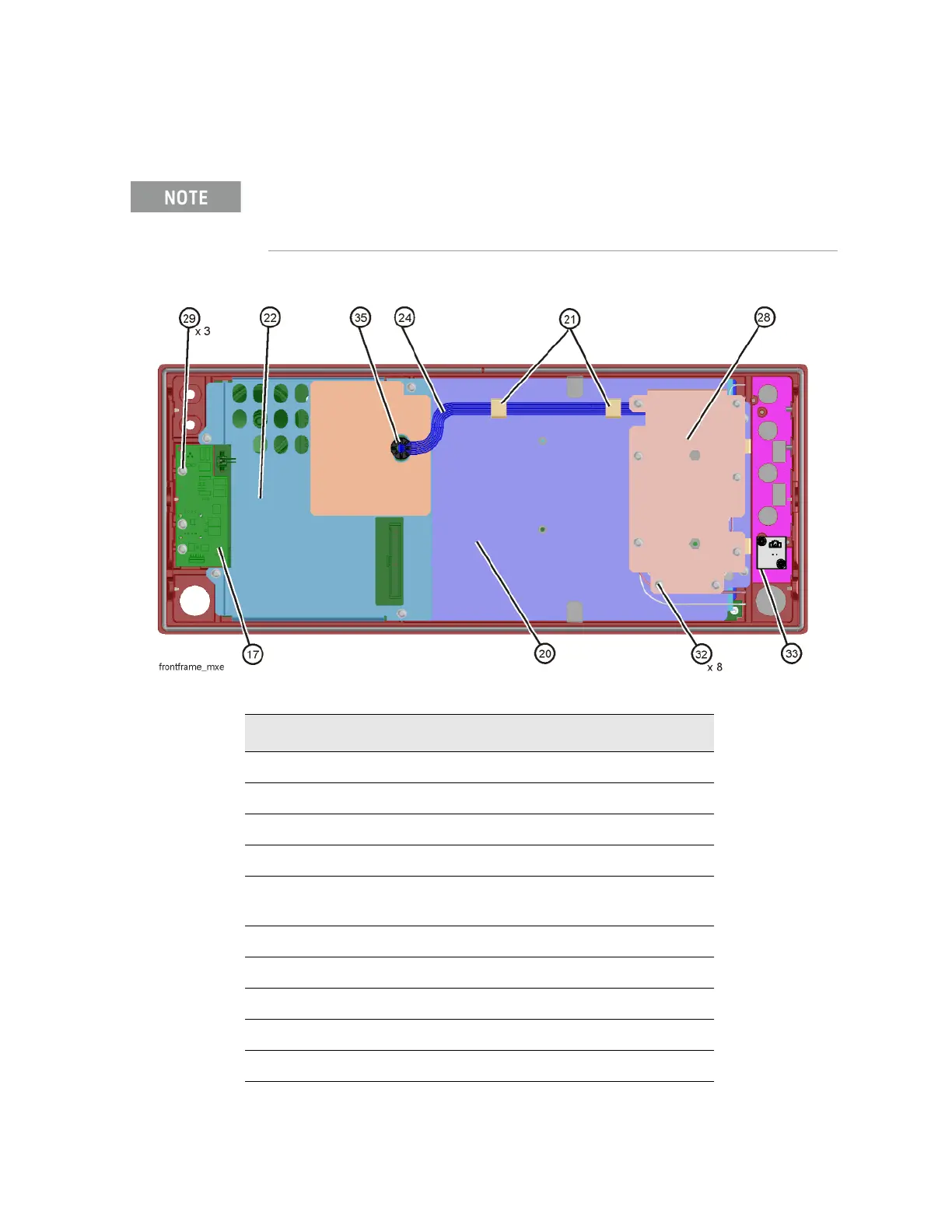

Figure 18-76 Front Frame Parts
Access to any of the Front Frame assemblies requires removal of the Front Frame Assembly from
the chassis.
Item Description
17 A1A5 Front Panel Daughter Board
20 A1MP14 Display Bracket
21 A1MP10-13 Cable Clamp
22 A1MP19 Shield, Front Panel Interface
24 A1W2 Cable Assembly, Wire Harness, Front Panel
Interface to Backlight Power Supply
28 A1MP16 Shield, Inverter Assembly, Top
29 Screw M3 X 0.5 (8 mm) (0515-0372)
32 Screw M3 X 0.5 (8 mm) (0515-0372)
33 A1A6 Input 2 LED Board
35 A1MP6 Grommet, A1W2
