Keysight N9038A MXE Service Guide 593
Assembly Replacement Procedures
Power Supply Assembly
Power Supply Assembly
Removal
1. Remove the instrument outer case. Refer to the Instrument Outer Case
removal procedure.
2. Remove the rear panel. Refer to the Rear Panel removal procedure.
3. Refer to Figure 18-48. Remove the three screws (1) (0515-1227)
attaching the power supply to the chassis.
4. The power supply assembly can be removed from the chassis by pulling
straight out the back.

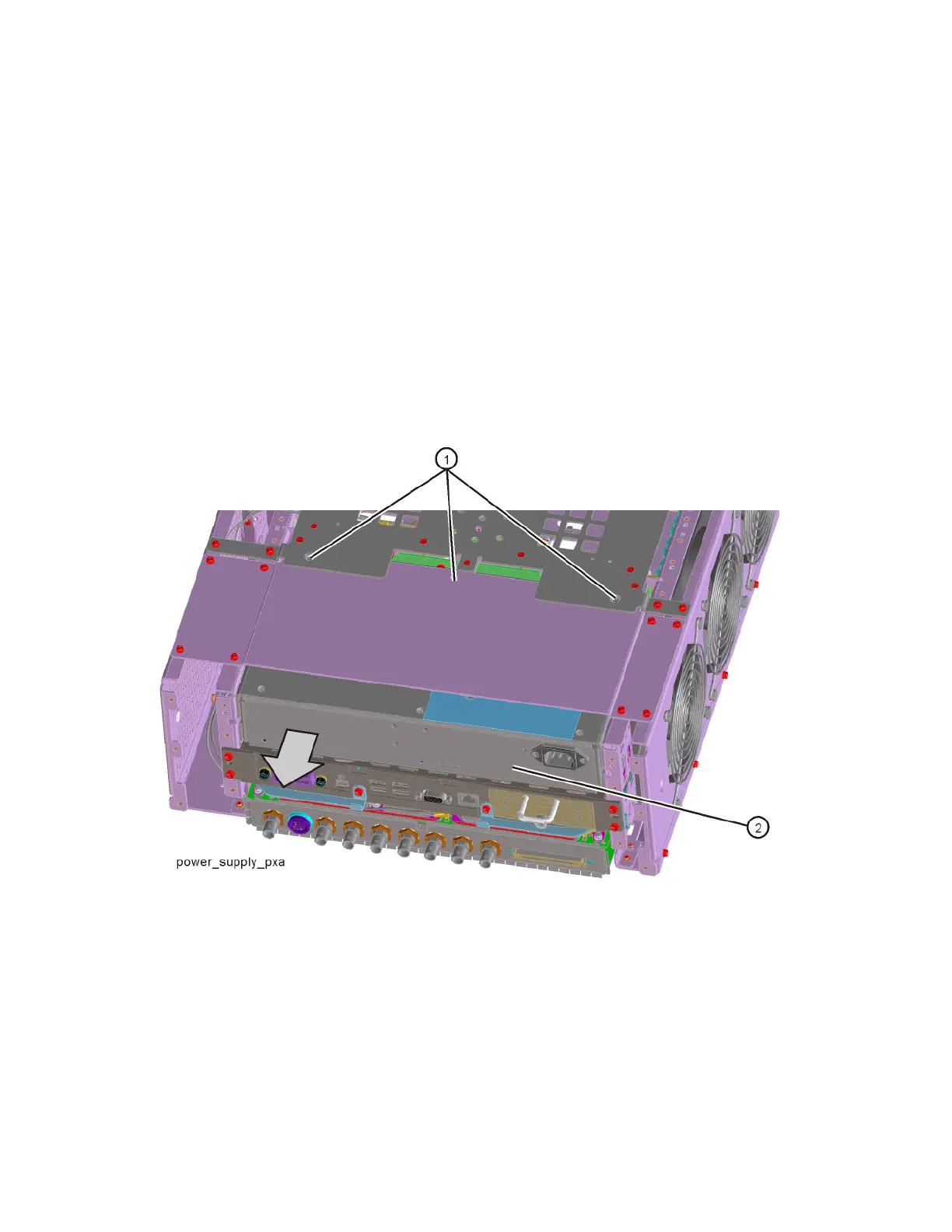

Figure 18-48 Power Supply Assembly Removal
