Keysight N9038A MXE Service Guide 575
Assembly Replacement Procedures
Front End Control Assembly
Front End Control Assembly
Removal
1. Remove the instrument outer case. Refer to the Instrument Outer Case
removal procedure.
2. Remove the instrument top brace. Refer to the Top Brace and Power
Supply Bracket removal procedure.

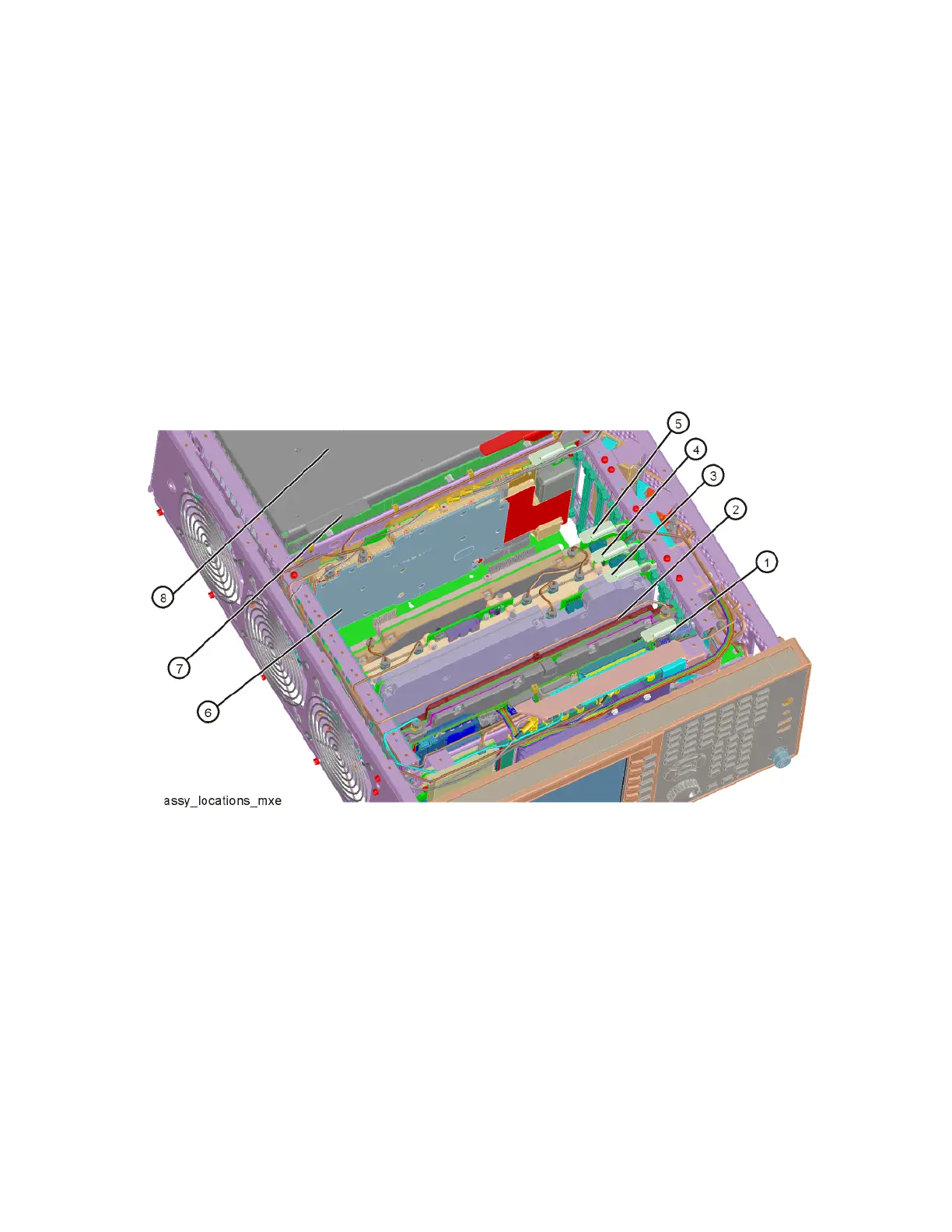

3. Refer to Figure 18-39. Locate the Front End Control assembly (1).
Figure 18-39 Assembly Locations
