Keysight N9038A MXE Service Guide 535
Assembly Replacement Procedures
Top Brace and Power Supply Bracket

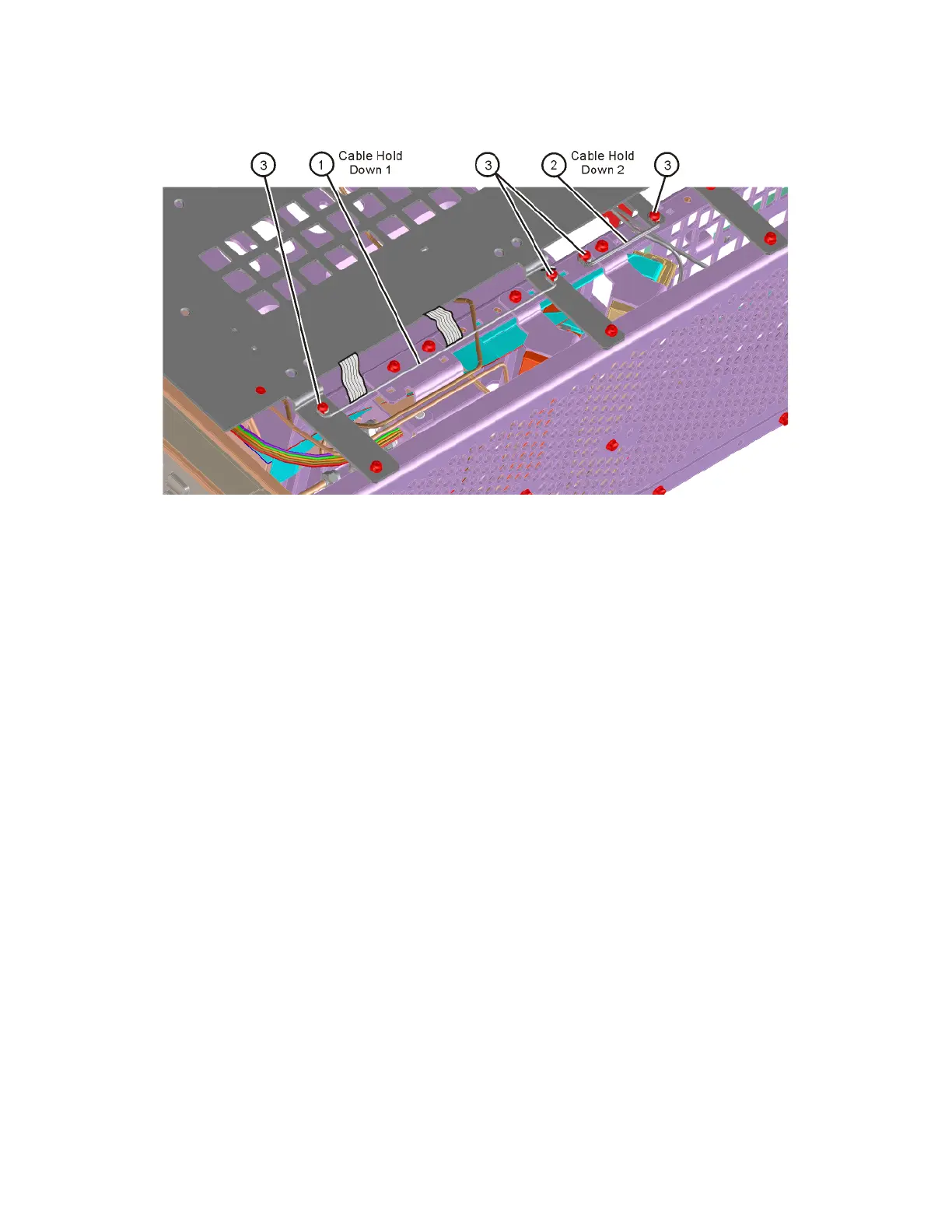

Figure 18-5 Wire Hold Downs
Replacement
1. Refer to Figure 18-4. To replace the top brace or the power supply
bracket, place them into the correct position and attach the screws
referred to in the removal process. Reinstall wire hold down 1. Torque to
9 inch-pounds.
