Keysight N9038A Service Guide

Keysight N9038A MXE Service Guide 585
Assembly Replacement Procedures
Wideband Analog IF and Wideband Digital IF Assemblies
Wideband Analog IF and Wideband Digital IF Assemblies
Removal
1. Remove the instrument outer case. Refer to the “Instrument Outer Case”
removal procedure.
2. Remove the top brace. Refer to the “Top Brace and Power Supply Bracket”
removal procedure.
3. Refer to Figure 18-44. Locate the A25 Wideband Analog IF and the A26
Digital IF assemblies.
4. Remove cables W15, W23, W50, W51, and W52 from the Wideband
Analog IF assembly.
5. Remove ribbon cable W10.
6. The Wideband Analog IF and Wideband Digital IF assemblies can now be
removed by pulling up on the ejectors to remove from the chassis.

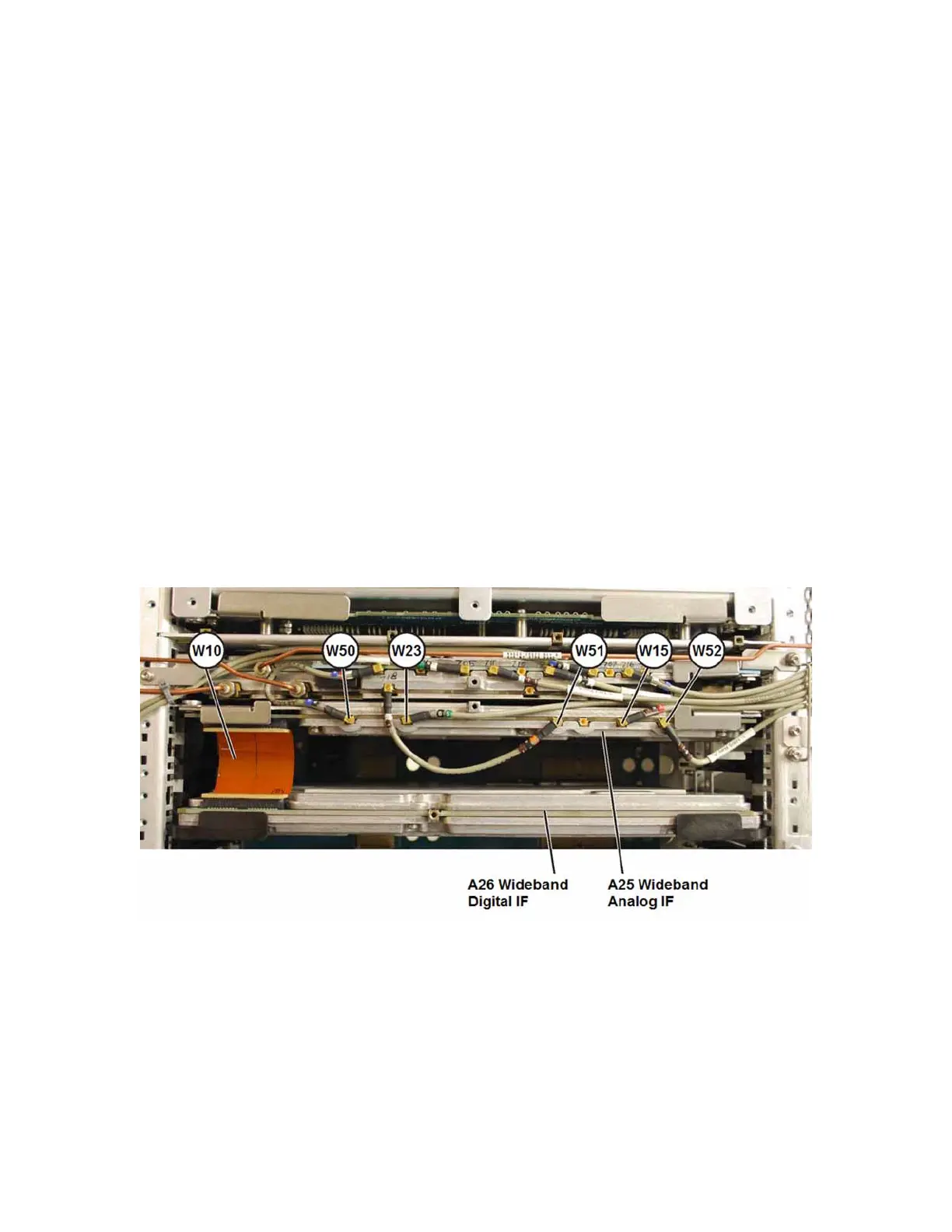

Figure 18-44 Option B85 Cables
