Keysight N9038A Service Guide

Keysight N9038A MXE Service Guide 263
L.O. Synthesizer
A14 L.O. Synthesizer Assembly Description
A14 L.O. Synthesizer Assembly Connections
The connections to and from the A14 LO Synthesizer assembly are as listed in
Table 7-1 and as illustrated in Figure 7-1.

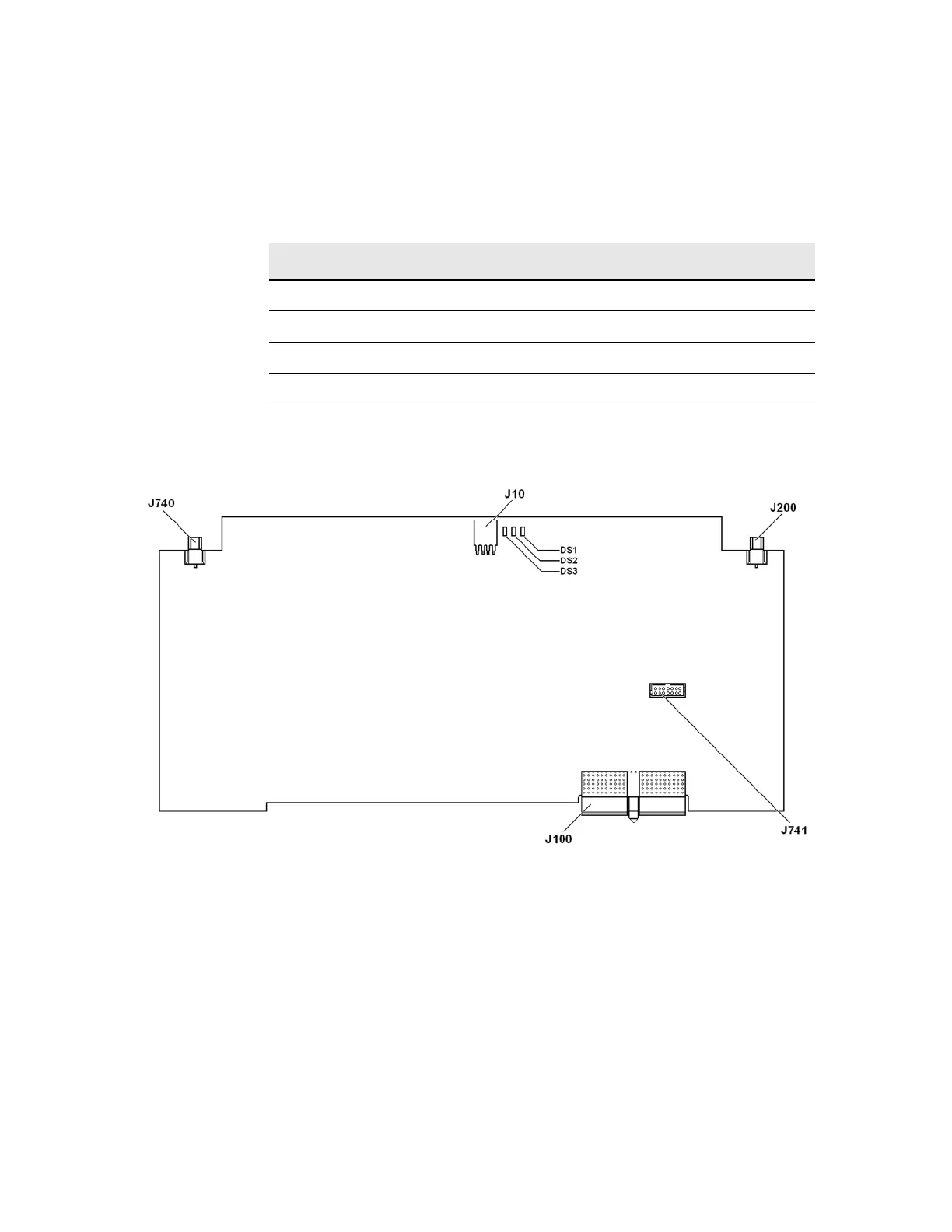

Figure 7-1 A14 L.O. Synthesizer Assembly Connections
Table 7-1 A14 L.O. Synthesizer Assembly Signals
Port Description To/From Cable
J10 Not Used n/a n/a
J100 Bias & Control A8 Motherboard J101 n/a
J200 4800 MHz Reference Signal A16 Reference J703 W41
J740 1st LO Output A13 Front End J4 W44
J741 JTAG Programming n/a n/a
