Keysight N9038A Service Guide

Keysight N9038A MXE Service Guide 531
Assembly Replacement Procedures
Major Assembly Locations
Major Assembly Locations

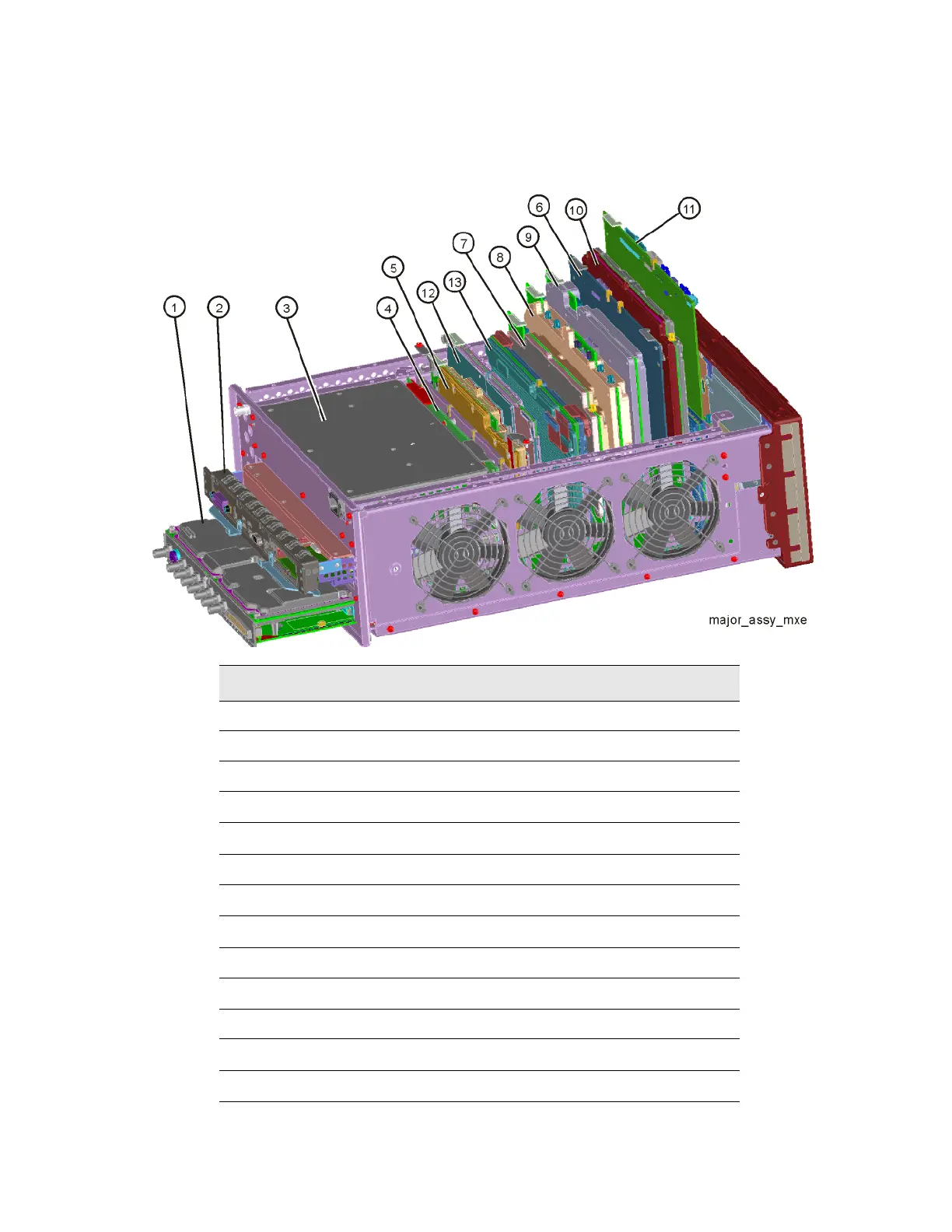

Figure 18-2 Major Assemblies
Item Description
1 A2 Analog IF Assembly and A3 Digital IF Assembly
2 CPU Assembly
3
A6 Power Supply Assembly
4
A7 Midplane Assembly
5
A16 Reference Assembly
6
A30 LISN Control Assembly
7
A24 Conducted Filter Assembly
8
A21 RF Preselector Input Assembly
9
A22 Radiated Filter Assembly
10
A14 LO Synthesizer Assembly
11 A15 Front End Control Assembly
12
A25 Wideband Analog IF Assembly
13
A26 Wideband Digital IF Assembly
