374 Keysight N9038A MXE Service Guide
Power Supply & Midplane
A7 Midplane Board Assembly Description
A7 Midplane Assembly Connections
The connections to and from the A7 Midplane assembly are as listed in Table
12-2 and as illustrated in Figure 12-1.

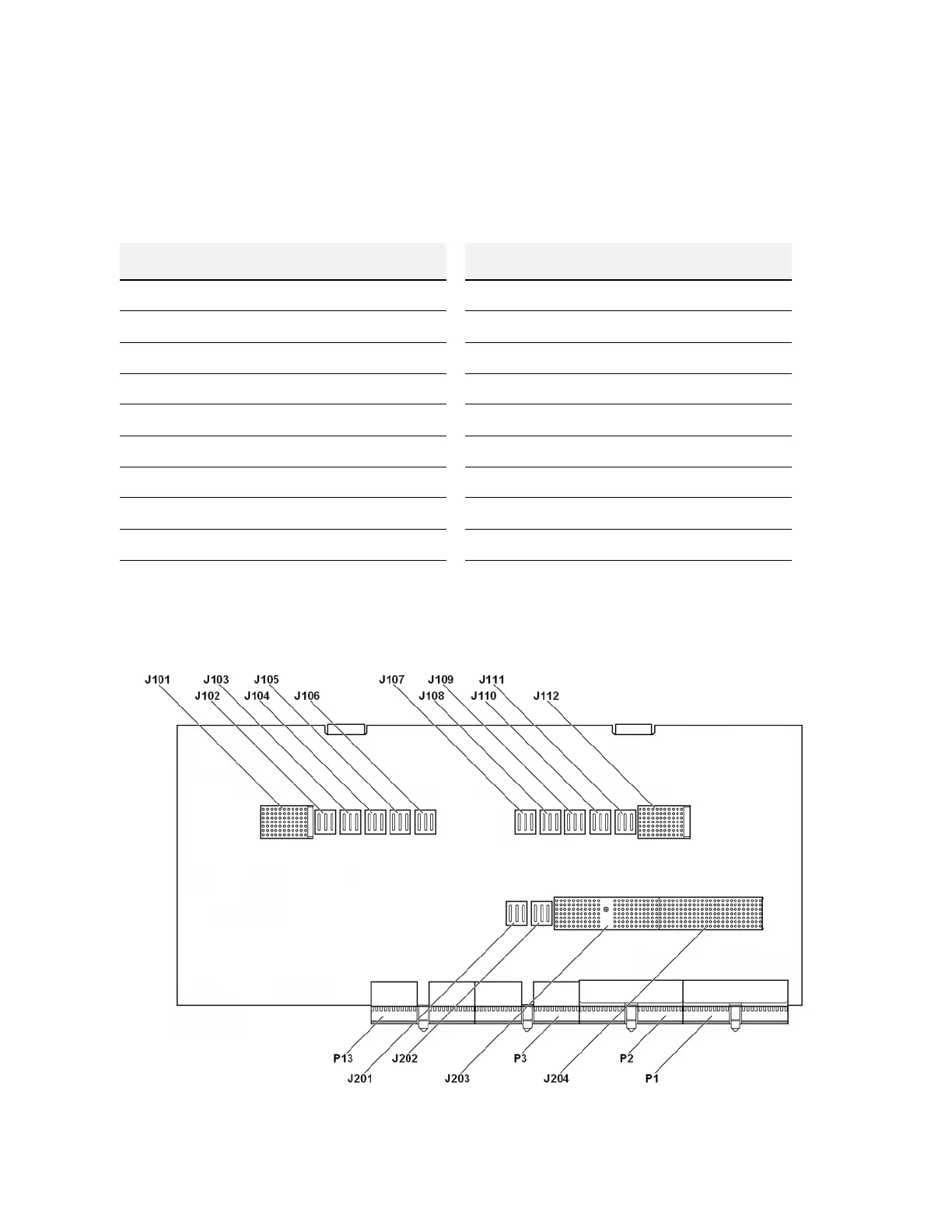

Figure 12-1 A7 Midplane Board Assembly Connections
Table 12-2 A7 Midplane Assembly Connections
Connector Connects To Connector Connects To
J101 A6 Power Supply Assembly J111 A6 Power Supply Assembly
J102 A6 Power Supply Assembly J112 A6 Power Supply Assembly
J103 A6 Power Supply Assembly J201 A4 Processor Assembly
J104 A6 Power Supply Assembly J202 A4 Processor Assembly
J105 A6 Power Supply Assembly J203 A4 Processor Assembly
J106 A6 Power Supply Assembly J204 A4 Processor Assembly
J107 A6 Power Supply Assembly P1 A8 Motherboard Assembly
J108 A6 Power Supply Assembly P2 A8 Motherboard Assembly
J109 A6 Power Supply Assembly P3 A8 Motherboard Assembly
J110 A6 Power Supply Assembly P13 A8 Motherboard Assembly
