Keysight N9038A MXE Service Guide 547
Assembly Replacement Procedures
RF Area - Option 503, 508, & 526
Cal Switch and Transfer Switch - Option 503, 508, & 526
Removal
1. Refer to Figure 18-15. Remove rigid cables W28, W36, W37, and W43.

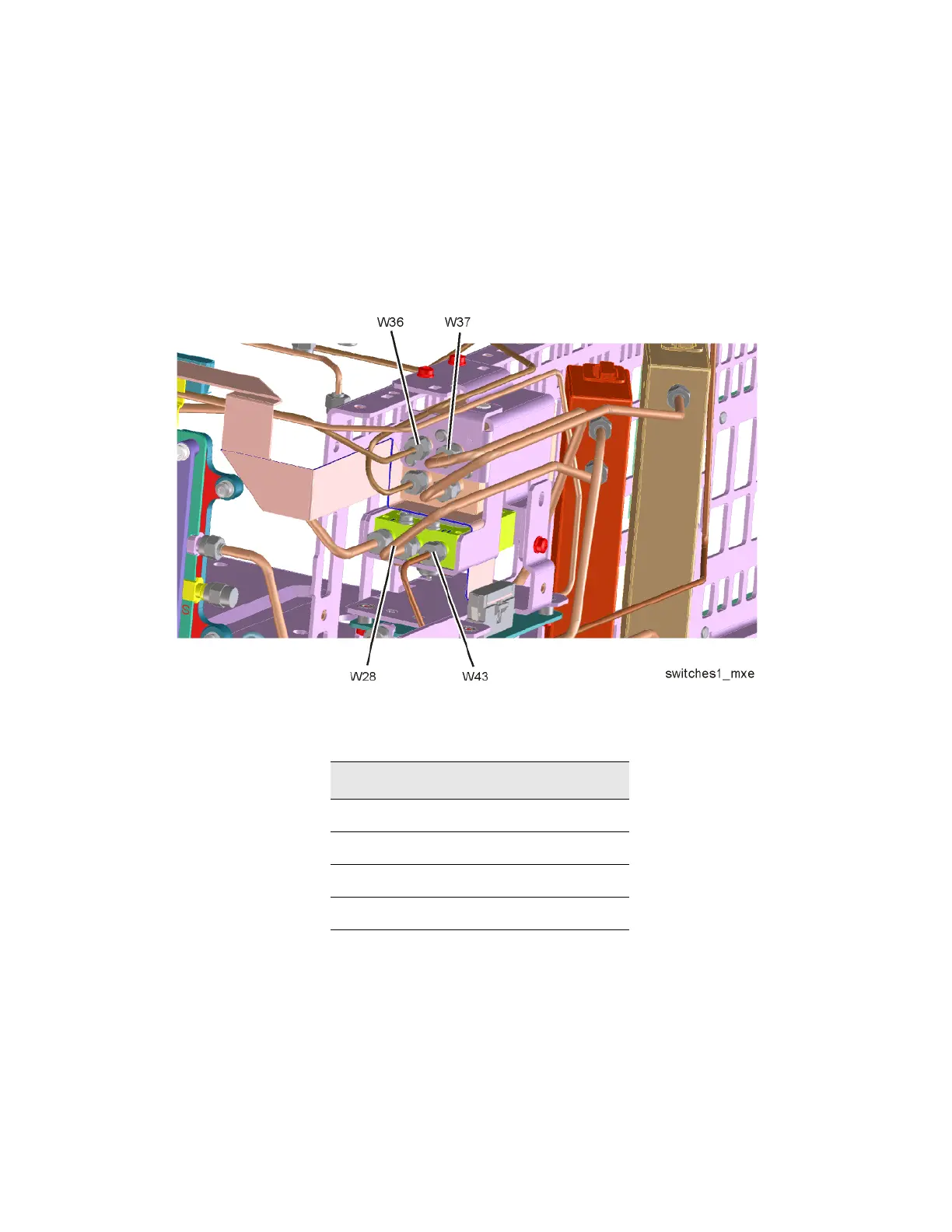

Figure 18-15 W28, W36, W37, W43 Cable Removal - Option 503, 508, & 526
Item Keysight Part Number
W28
N9038-21303
W36
N9038-21307
W37
N9038-21315
W43
N9038-21304
