566 Keysight N9038A MXE Service Guide
Assembly Replacement Procedures
RF Area - Option 544
Cal Switch and Transfer Switch - Option 544
Removal
1. Refer to Figure 18-32. Remove rigid cables W27, W28, W30, W31, W36,
W37, W38, W39, and W43.

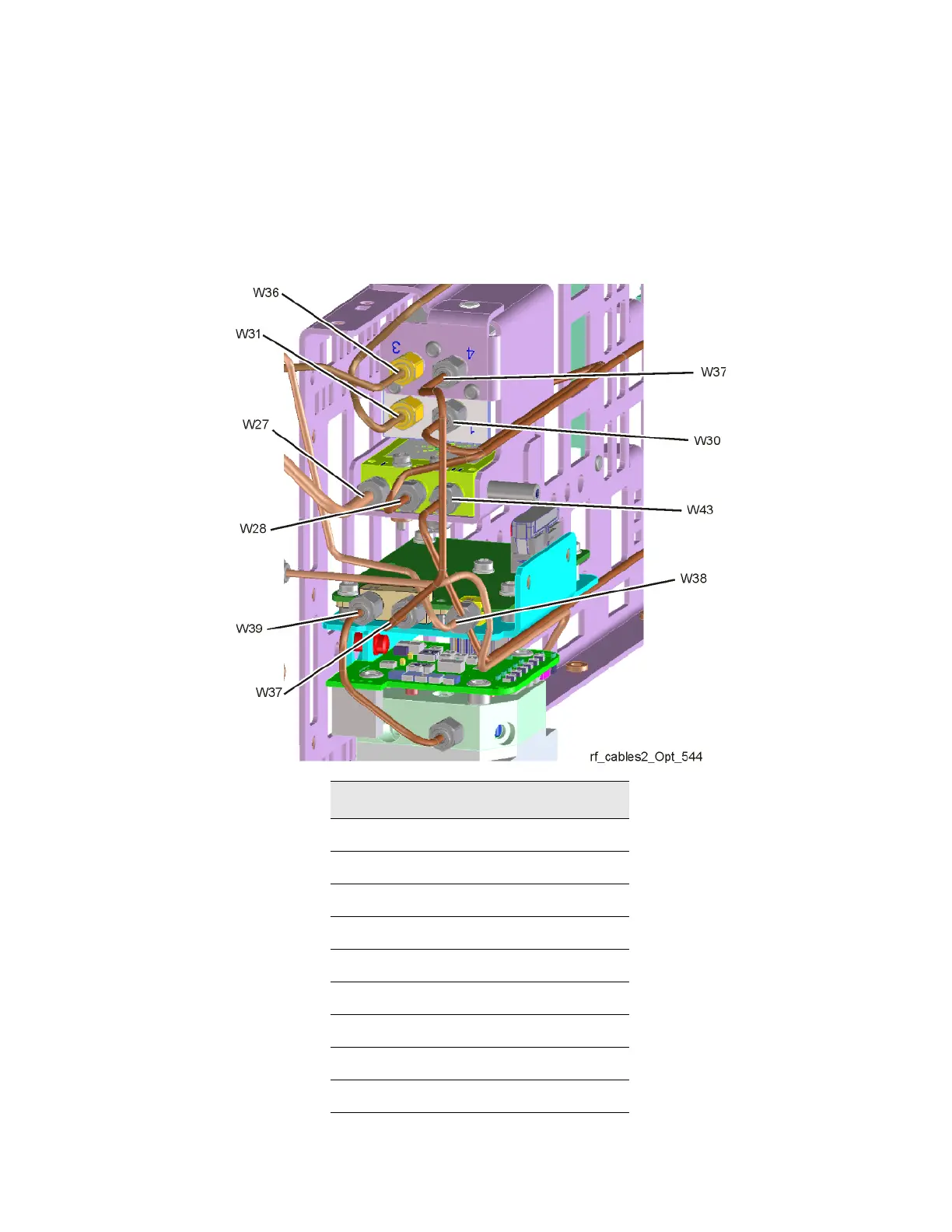

Figure 18-32 Cal Switch and Transfer Switch Cables - Option 544
Item Keysight Part Number
W27
N9038-21301
W28
N9038-21332
W30
N9038-21333
W31
N9038-21334
W36
N9038-21335
W37
N9038-21336
W38
N9038-21339
W39
N9010-20005
W43
N9038-21304
