Keysight N9038A - Page 548

Keysight N9038A MXE Service Guide 567
Assembly Replacement Procedures
RF Area - Option 544
2. Refer to Figure 18-33. Remove the two screws (1) and remove the
switch/bracket assembly from the chassis. Remove the ribbon cables from
the switches.

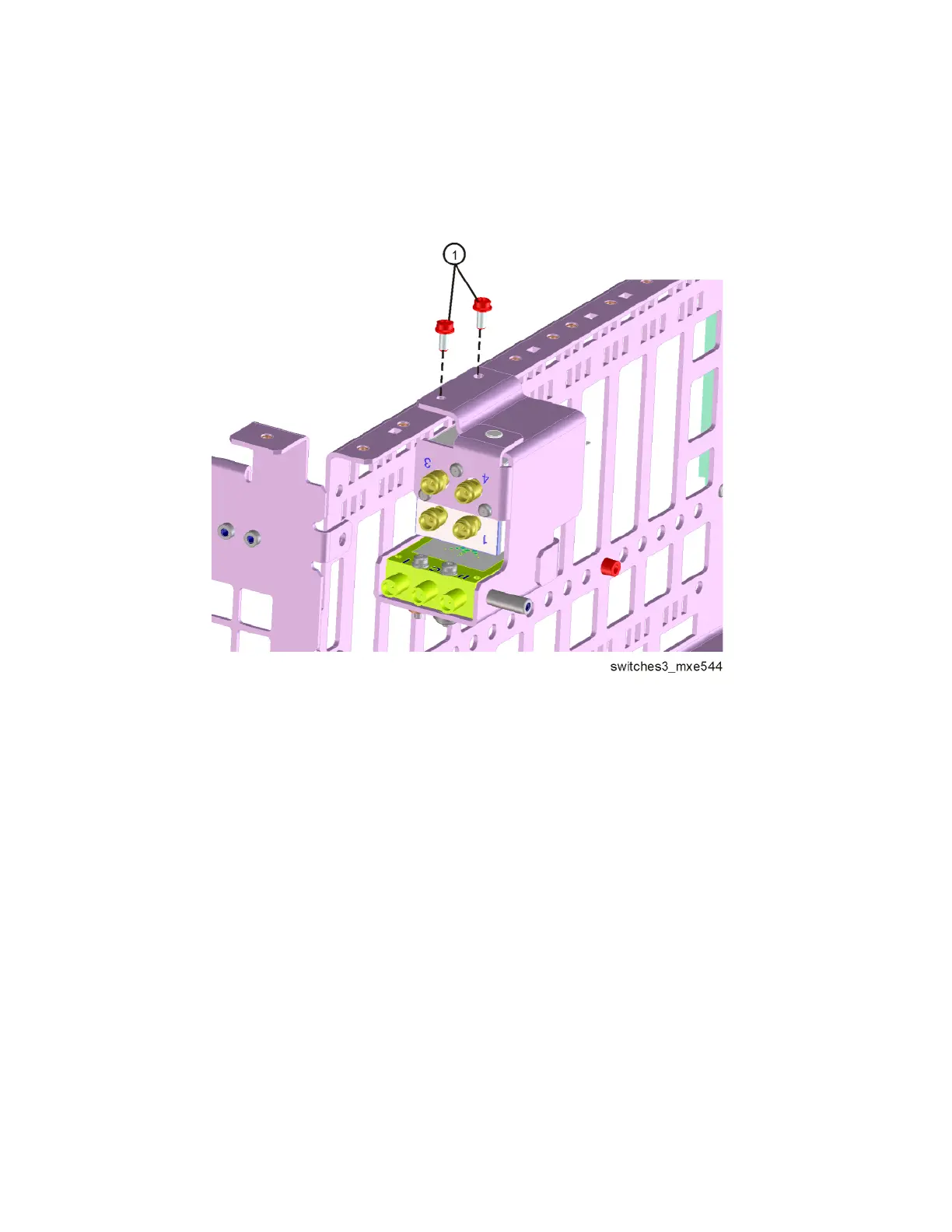

Figure 18-33 Switches/Bracket Removal - Option 544
