568 Keysight N9038A MXE Service Guide
Assembly Replacement Procedures
RF Area - Option 544
3. To separate the Cal Switch (1) from the bracket (5) (N9020-80057),
remove the two screws (2) (0515-1410).
To separate the Transfer Switch (3) from the bracket (5), remove the
three screws (4) (0515-1940).

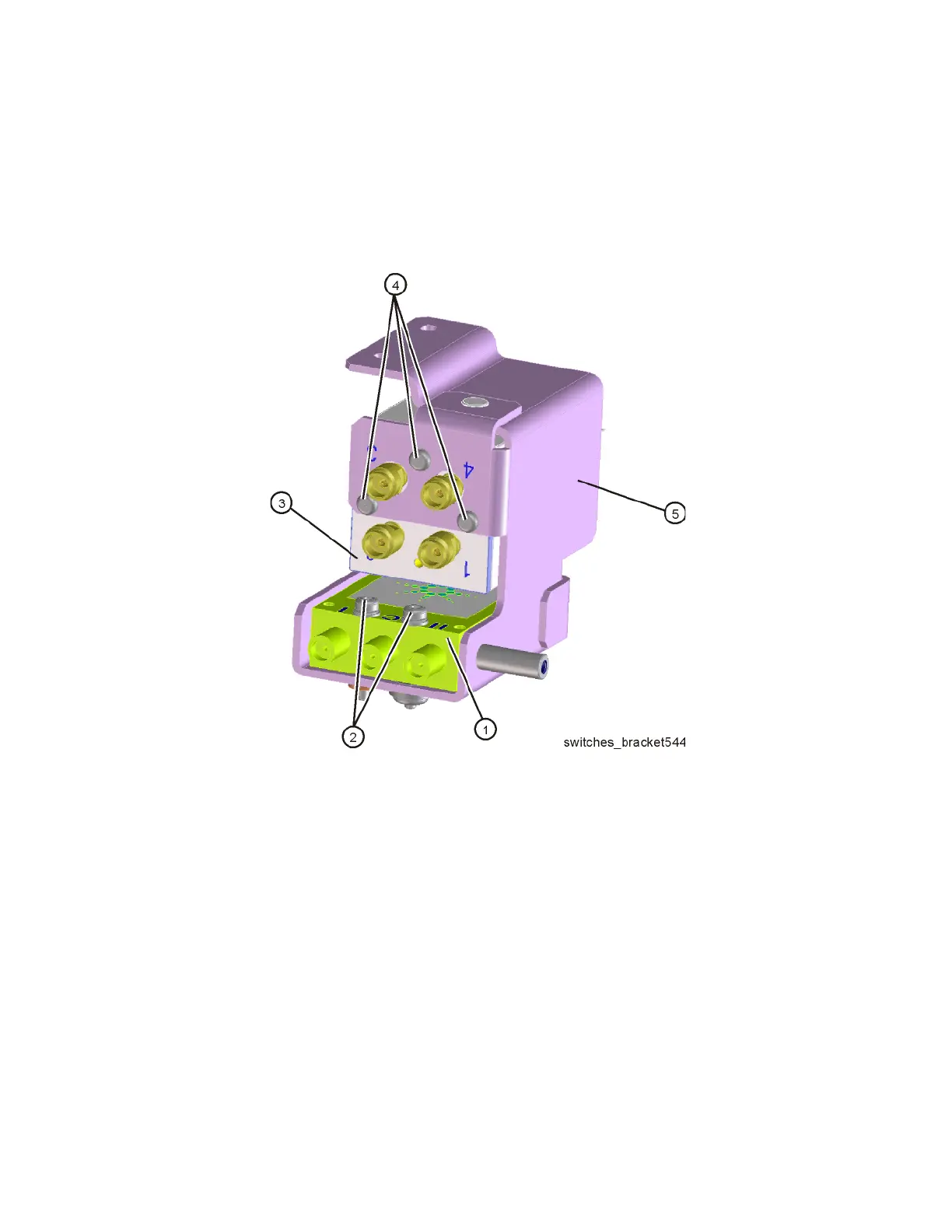

Figure 18-34 Bracket Mount to Switch - Option 544
