Keysight N9038A MXE Service Guide 579
Assembly Replacement Procedures
Radiated Filter Assembly
Radiated Filter Assembly
Removal
1. Remove the instrument outer case. Refer to the Instrument Outer Case
removal procedure.
2. Remove the top brace. Refer to the Top Brace and Power Supply Bracket
removal procedure.
3. Refer to Figure 18-39. Locate the Radiated Filter assembly (3).
4. Refer to Figure 18-42. Remove cable W34 using the 5/16-inch wrench.

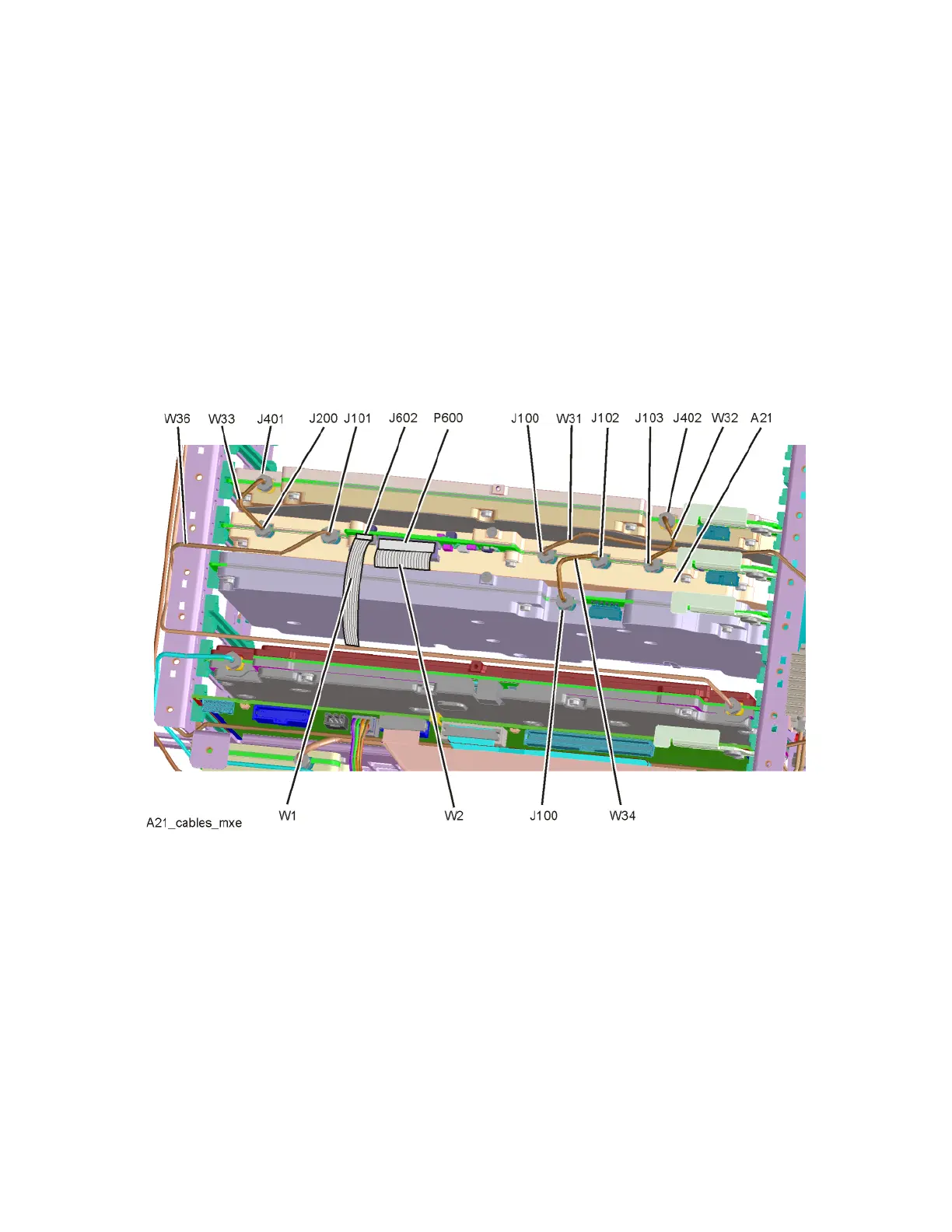

Figure 18-42 Radiated Filter, RF Preselector Input, and Conducted Filter Cables
5. The Radiated Filter assembly can now be unplugged from the
motherboard by using the ejector on the Radiated Filter assembly to
disconnect from the motherboard and lift out of the chassis.
