474 Keysight N9038A MXE Service Guide
Service and Diagnostics Menus
Service Key Descriptions
Diagnostics Key Description
Diagnostics
The Diagnostics menu key directly under the System menu will contain system
level diagnostics that can be either viewed by any user.
Show Hdwr Statistics
As shown in Figure 16-17, this will display the following instrument
hardware statistics:
— Mechanical relay switch counts
— Mechanical attenuator switch counts
— Instrument temperature extremes
— Elapsed instrument on-time

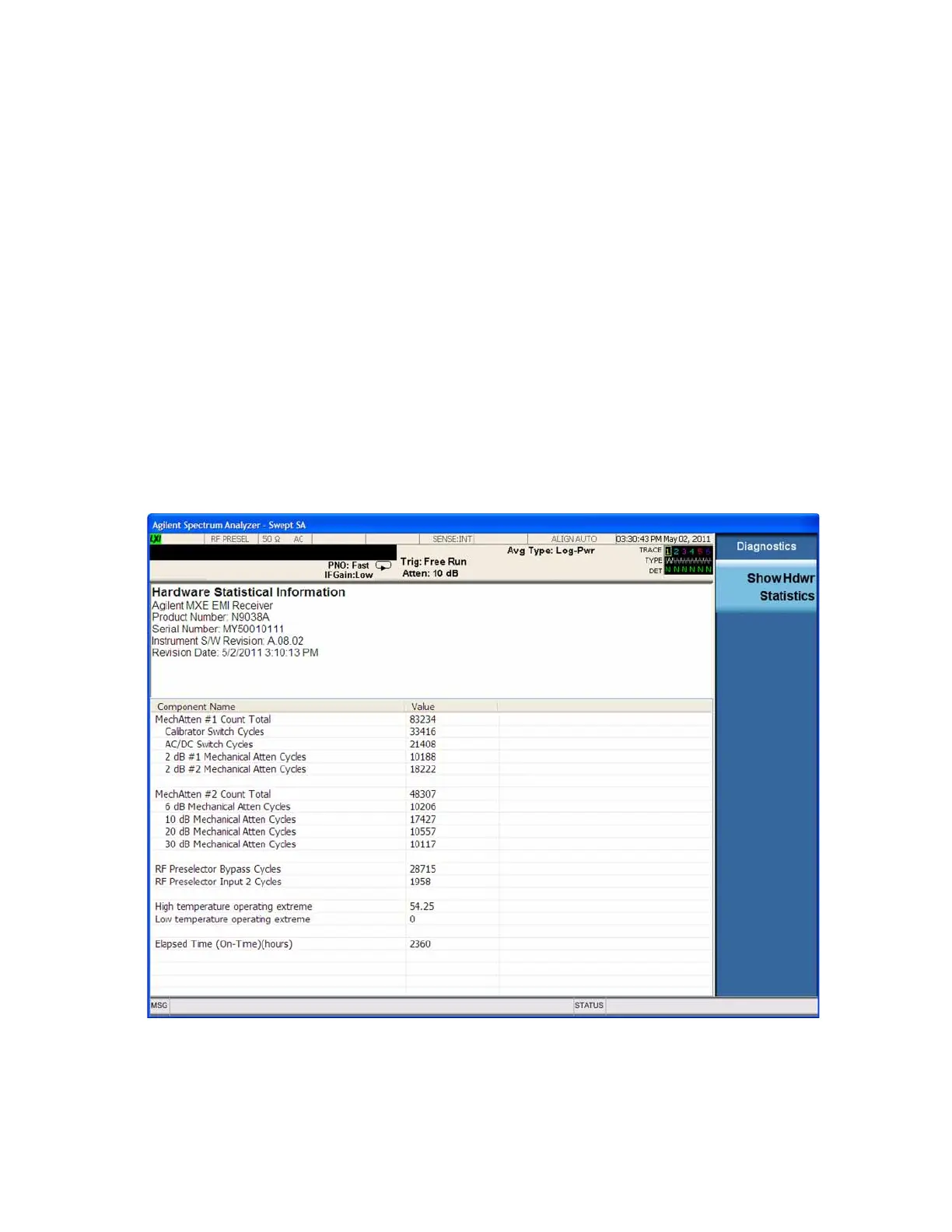

Figure 16-17 Hardware Statistical Information
