Keysight N9038A Service Guide

Keysight N9038A MXE Service Guide 495
Replaceable Parts
Hardware
Hardware

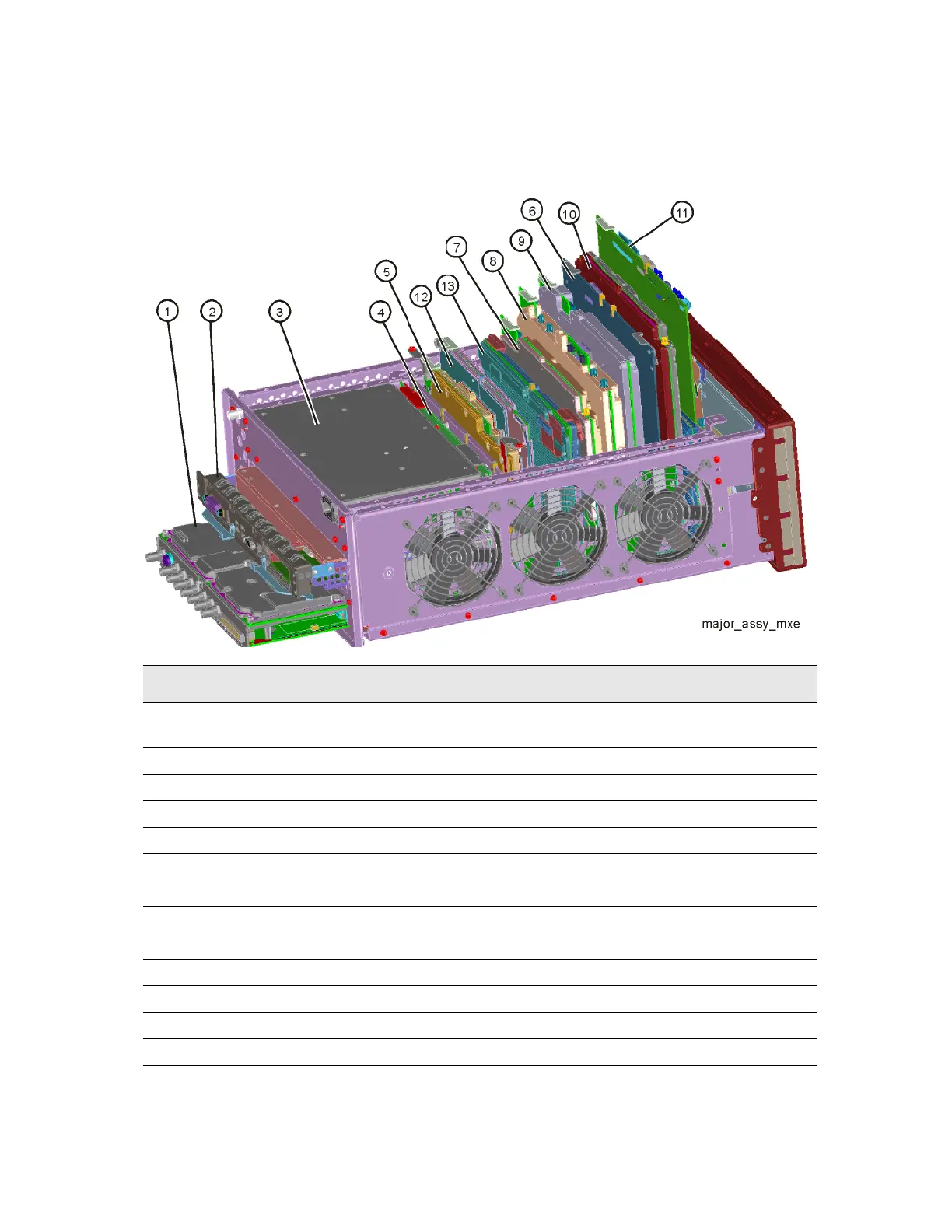

Figure 17-1 Major Assemblies
Item Description
Part Number
a
a. Most current part numbers shown. See Table 17-1 for a complete list of part numbers for
older instruments.
1 A2 Analog IF Board
A3 Digital IF Board
N9020-60011
N9038-60116
2 A4 CPU Assembly (without A5 disk drive) N9038-60212
3 A6 Power Supply Assembly 0950-4934
4 A7 Midplane Assembly W1312-63095
5 A16 Reference Assembly N9020-60188
6 A30 LISN Control Assembly N9038-60027
7 A24 Conducted Filter Assembly N9038-60001
8 A21 RF Preselector Input Assembly N9038-60003
9 A22 Radiated Filter Assembly N9038-60002
10 A14 LO Synthesizer Assembly N9020-60118
11 A15 Front End Control Assembly N9020-60172
12 A25 Wideband Analog IF Assembly N9020-60044
13 A26 Wideband Digital IF Assembly N9020-60257
