Keysight N9038A MXE Service Guide 591
Assembly Replacement Procedures
Rear Panel
Rear Panel
Removal
1. Remove the instrument outer case. Refer to the Instrument Outer Case
removal procedure.
2. Refer to Figure 18-47. Remove W21 (2) cable from the rear panel using
the 9/16- inch nut driver.
3. If present, remove W9 (5) from the rear panel using the 3/16” nut driver.
4. If present, remove W22 (3) from the rear panel using the 5/16” nut driver.
5. Using the T-10 driver, remove the sixteen screws (4) (0515-0372)
attaching the rear panel (1) to the chassis. The rear panel can now be
removed.

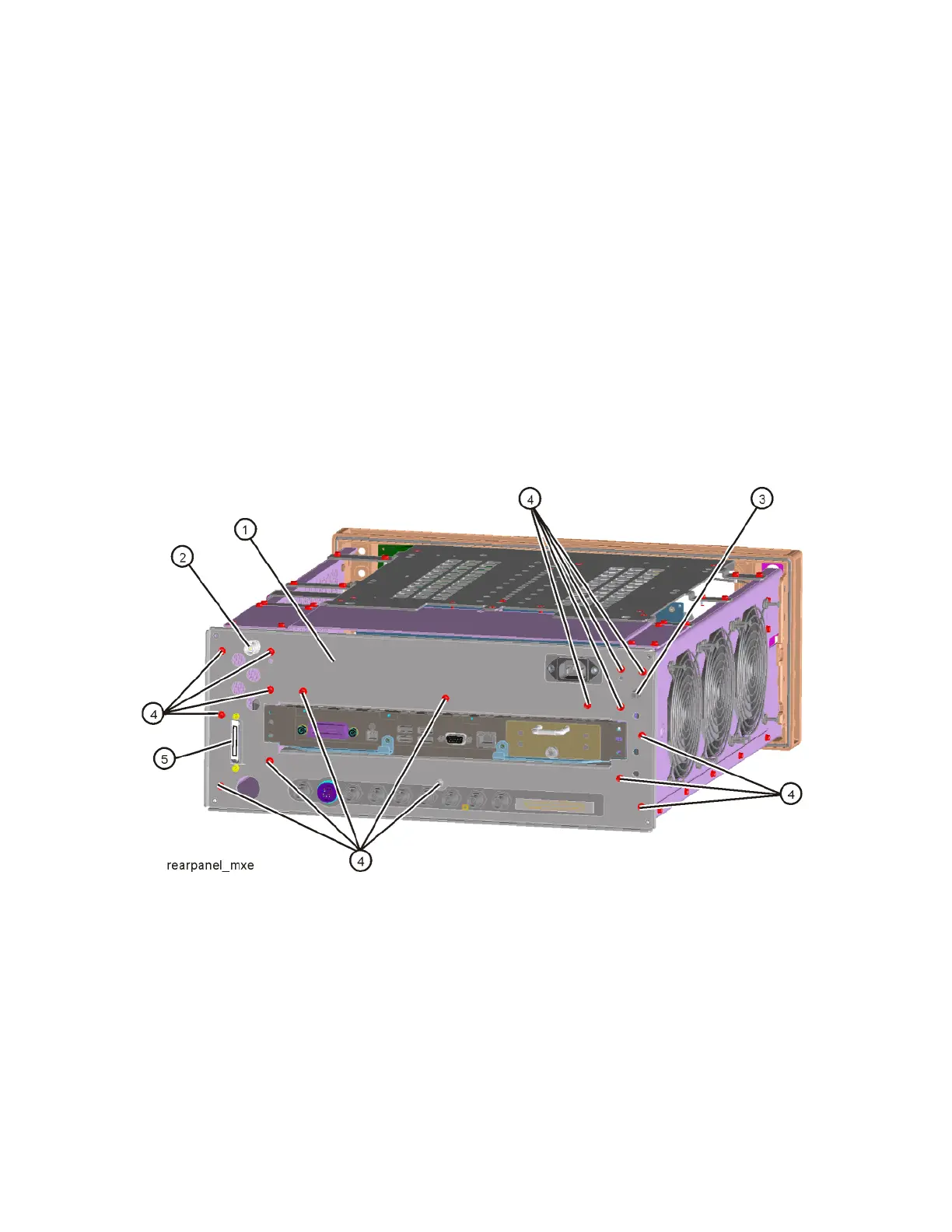

Figure 18-47 Rear Panel Removal
