Keysight N9038A Service Guide

Keysight N9038A MXE Service Guide 315
Reference Assembly
A16 Reference Assembly Troubleshooting
Digital IF Reference (100 MHz)
1. Disconnect Cable W20 from A16J716 as shown in Figure 9-3.
2. Verify with a spectrum analyzer that the frequency and amplitude of the
Digital IF Reference signal at A16J716 is equal to that specified for it in
Table 9-3, as shown in Figure 9-7.

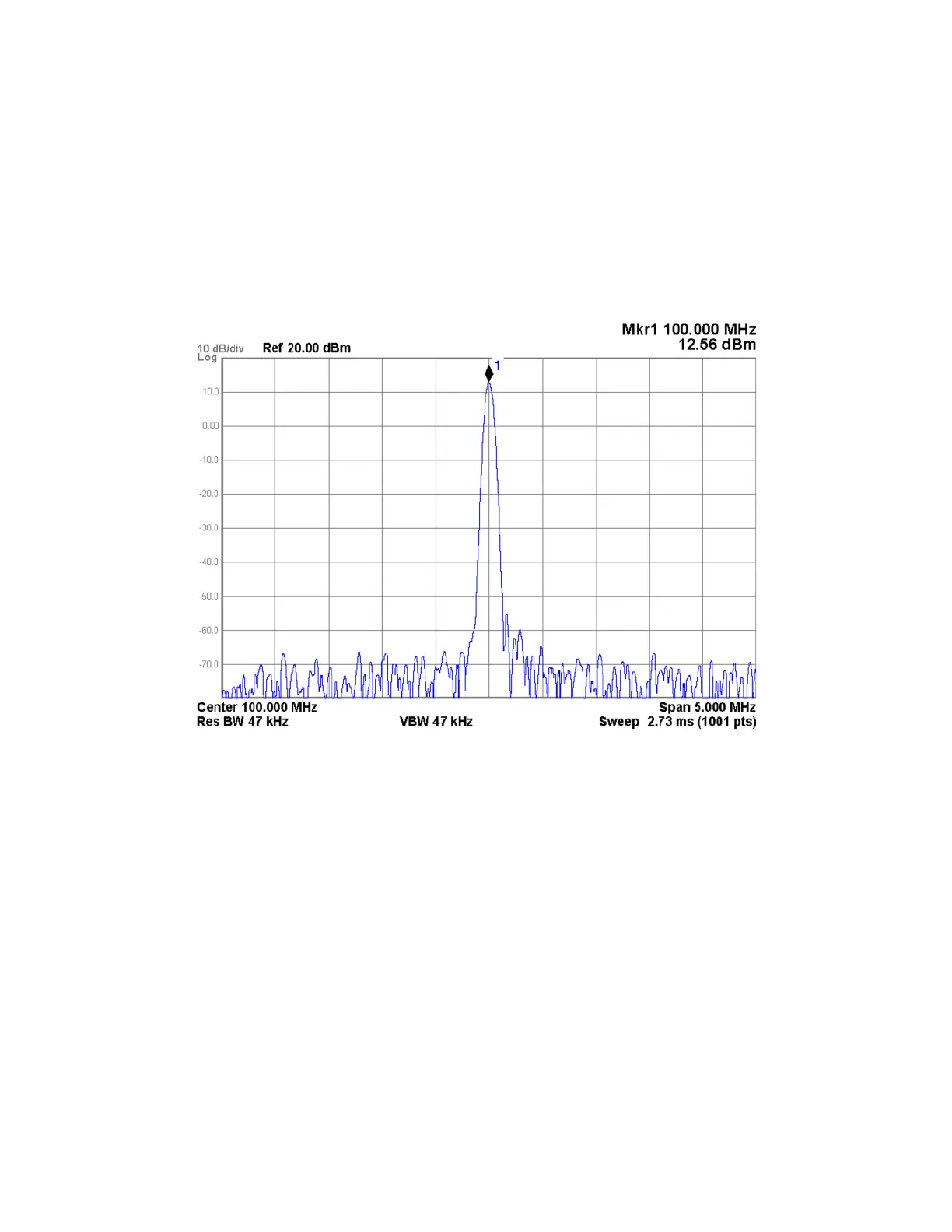

Figure 9-7 A16 Reference Assembly Digital IF Reference (100 MHz)
