634 Keysight N9038A MXE Service Guide
Assembly Replacement Procedures
Front Frame Assembly

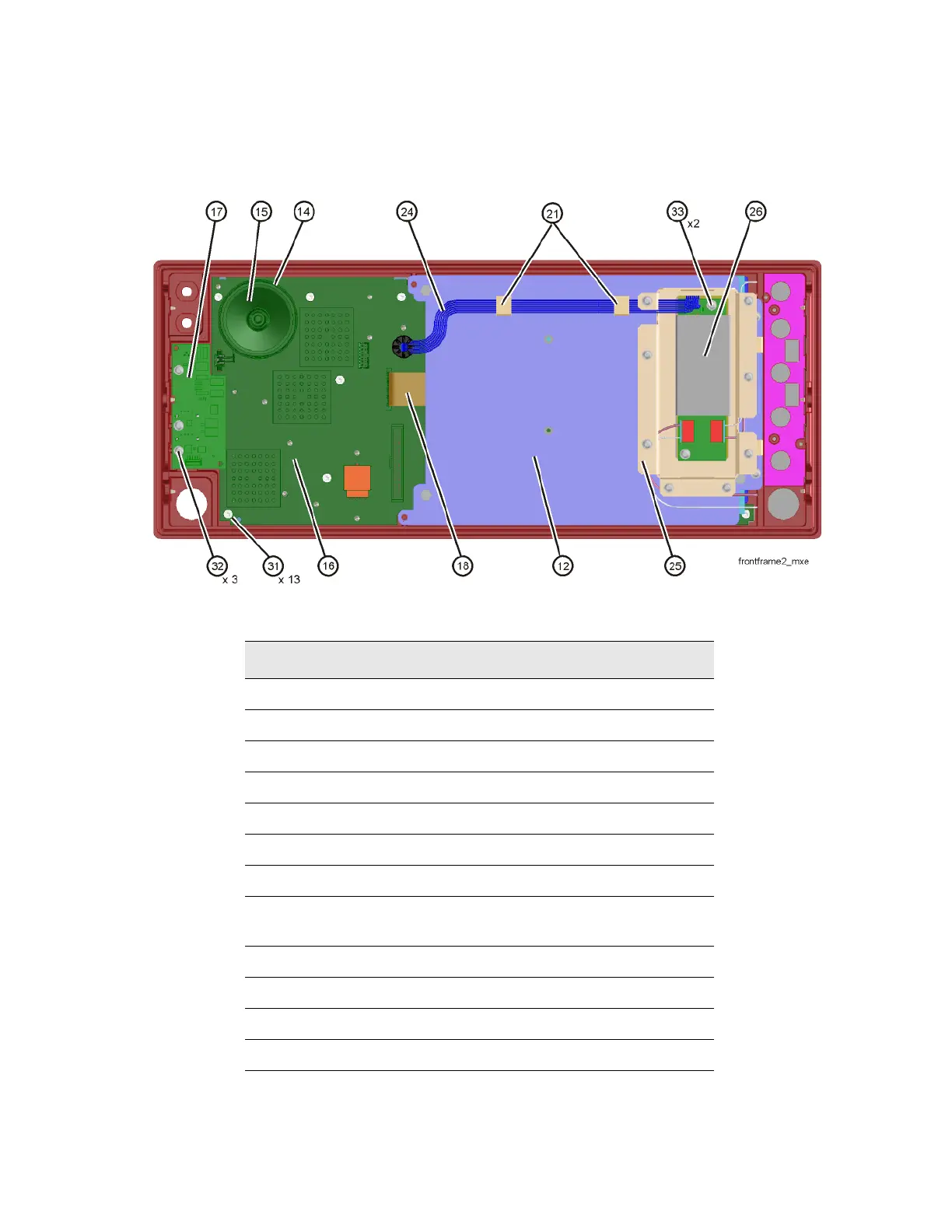

Figure 18-77 Front Frame Parts (shields off) - CCFL Backlight
Item Description
12 A1MP14 Display Bracket
14 A1A2MP2 Speaker Foam
15 A1A2MP1 Speaker
16 A1A2 Front Panel Interface Board
17 A1A5 Front Panel Daughter Board
18 A1W1 Flex Circuit, Front Panel Interface to LCD
21 A1MP10-13 Cable Clamp
24 A1W2 Cable Assembly, Wire Harness, Front Panel
Interface to Backlight Power Supply
25 A1MP17 Shield, Inverter Assembly, Bottom
26 A1A4 Display Backlight Power Supply
31 Screw M3 X 0.5 (5 mm) (0515-1521)
33 Screw M3 X 0.5 (8 mm) (0515-0372)
To Next Page
