2-112 Service Manual
5026

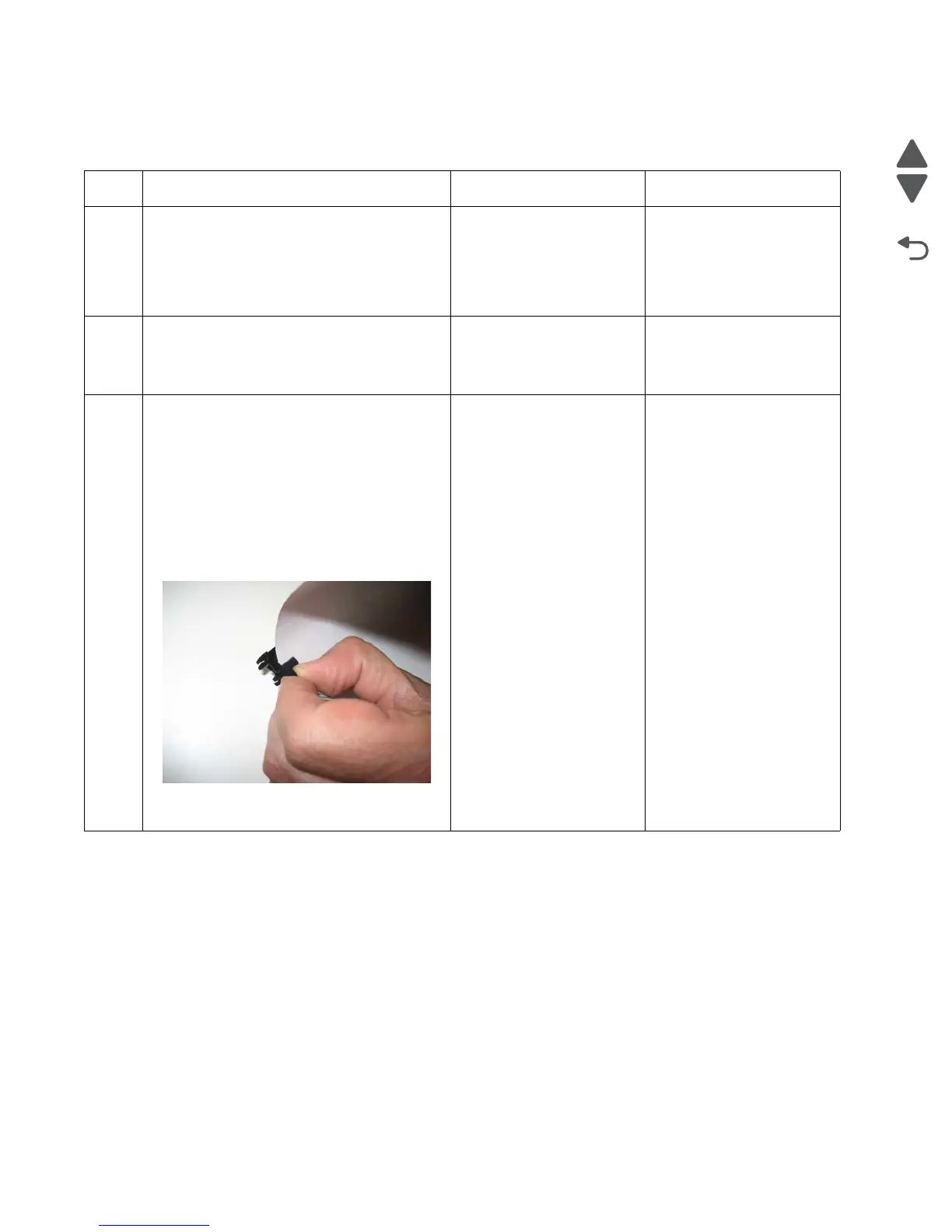

920.17—POST (power-on self test)—Output bin cable not connected error service
check
Step Questions / actions Yes No
1 1. Turn the printer off.
2. Remove the rear frame cover. See “Rear
frame cover removal” on page 4-47.
3. Reseat the bin full sensor cable in
connector JBIN1.
Does the error clear?
Problem resolved. Go to step 2.
2
Check the bin full sensor cable in connector
JBIN1 for pinch points and any other damage
to the cable or connector.
Is the cable damaged?
Replace the bin full sensor
with cable. See “Bin full
sensor removal” on
page 4-65.
Go to step 3.
3
1. Disconnect the cable in the JBIN1
connector.
2. Connect the new bin full flag cable in the
JBIN connector.
3. Bring the printer up in Diagnostic menu
(turn off the printer, press and hold
buttons 3 and 6, then turn on the printer).
4. Navigate to SENSOR TESTS > Other
Sensors > Bin Full Test.
5. Activate the new bin full sensor by placing
a sheet of paper in the sensor.
Did the bin full sensor change from Open to
Closed?
Replace the bin full sensor
and cable. See “Bin full
sensor removal” on
page 4-65.
Replace the system board.
See “System board
removal” on page 4-163.
