Electrophotographic (EP) drive assembly removal
See “EP drive assembly” on page 7-9 for the part number.
1. Remove the paper tray.
2. Remove the transport belt module and the developer units. See “Transfer module removal” on
page 4-179.
3. Remove the cartridges.
4. Remove the low-voltage power supply (LVPS). See “Low-voltage power supply (LVPS) removal” on
page 4-127.

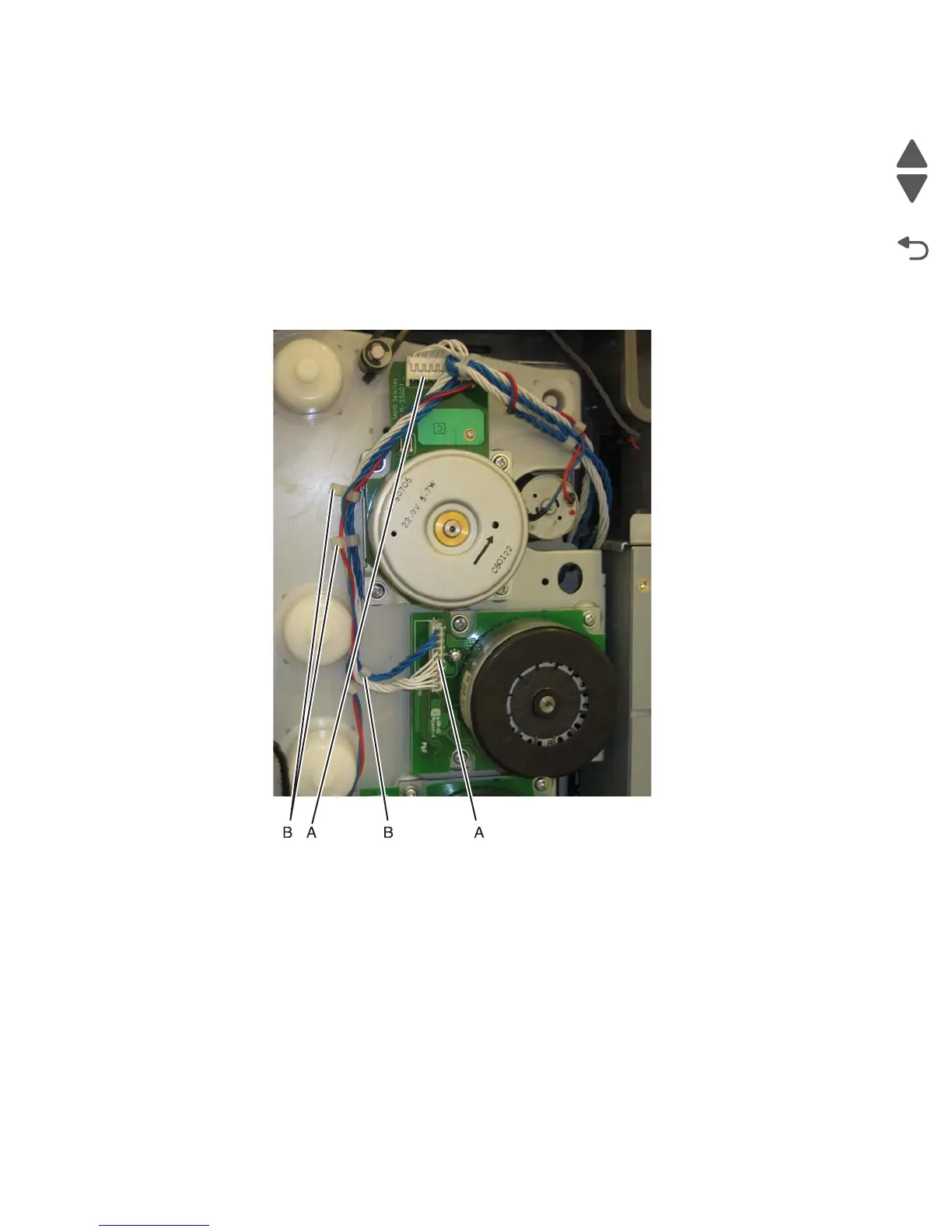

5. Disconnect the cartridge 1/fuser motor cable (two connectors) (A), and remove the cables from the cable
retainers (B).
