Lexmark CS748de - Toner Level Sensor Removal

Repair information 4-171
5026
Go Back
Previous
Next
Toner level sensor removal
See “Toner level sensor” on page 7-13 for the part number.

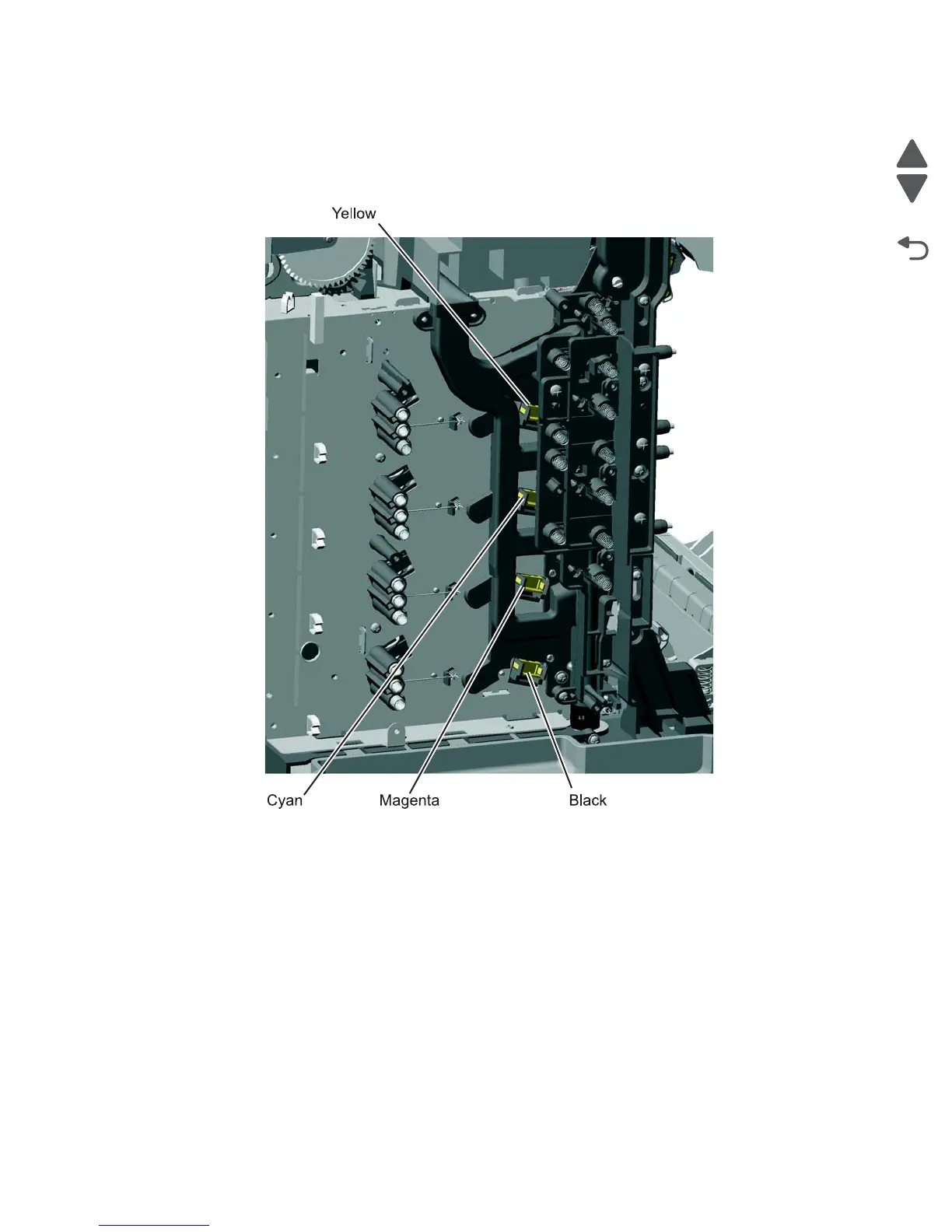

Note the locations of the toner sensors.
1. Remove the HVPS. See “High-voltage power supply (HVPS) removal” on page 4-123.
2. For the upper two sensors: These sensors are more difficult to reach because the toner is difficult to
reach:
