Repair information 4-93
5026
Go Back
Previous
Next

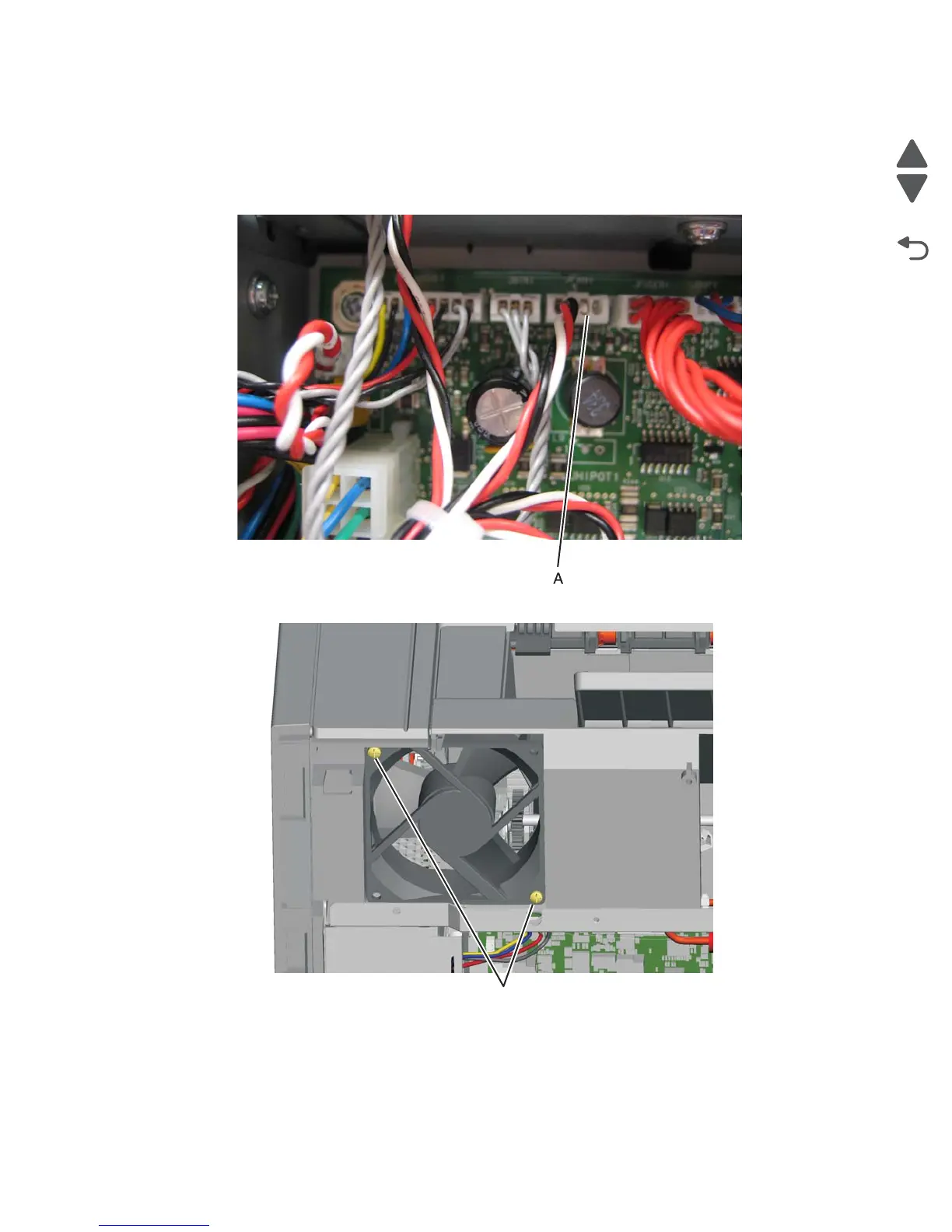

Cooling fan removal
1. Remove the rear upper cover. See “Rear upper cover removal” on page 4-50.
2. Remove the rear frame cover. See “Rear frame cover removal” on page 4-47.
3. Disconnect JFAN1 (A).
4. Remove the two screws (B).
5. Remove the cooling fan.
B
