Multipurpose feeder (MPF)/duplex motor cable removal
1. Remove the multipurpose feeder/duplex motor. See “Multipurpose feeder (MPF)/duplex motor
assembly removal” on page 4-133.

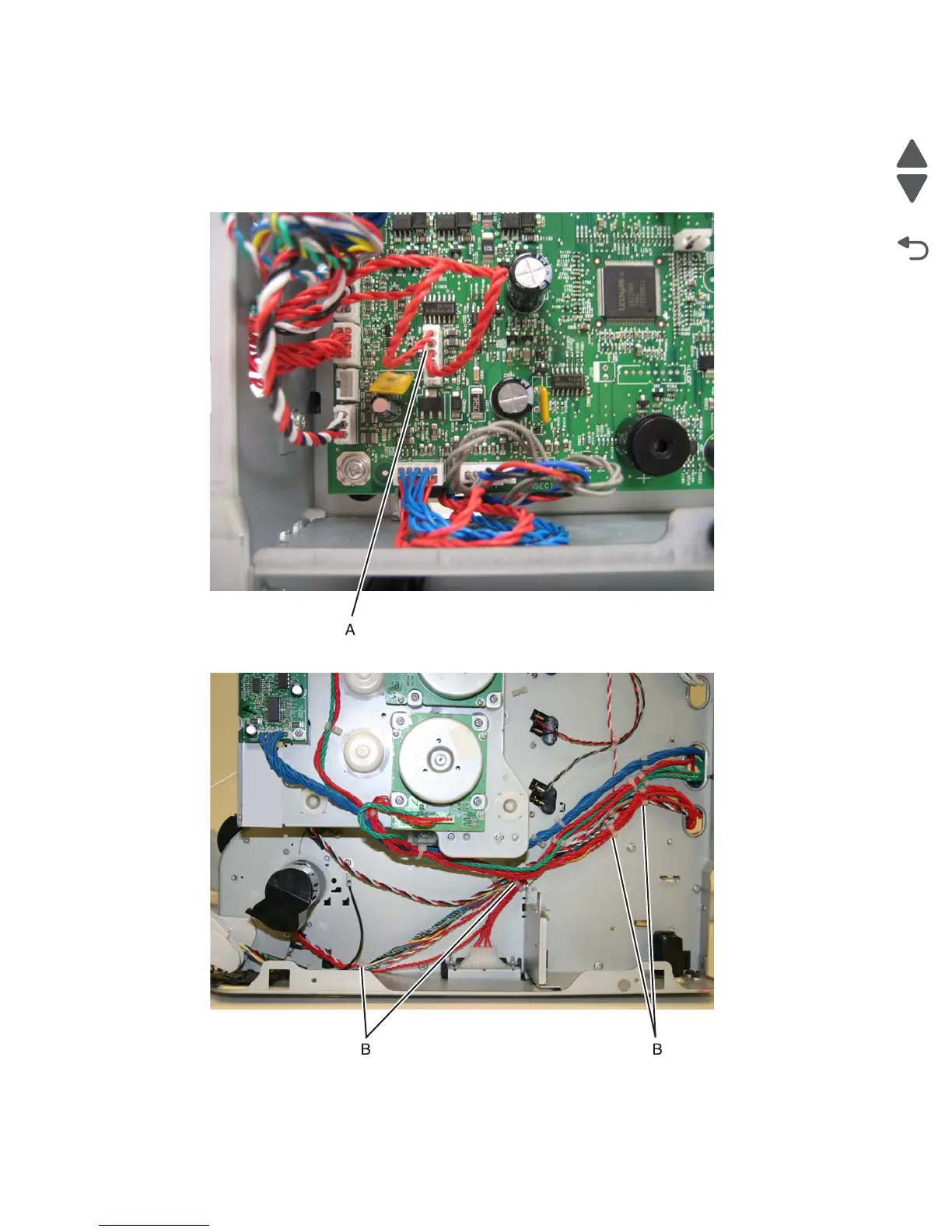

2. Disconnect the connector from JDX1 (A) on the system board.
3. Remove the cable from the cable retainers (B).
