Repair information 4-207
5026
Go Back
Previous
Next

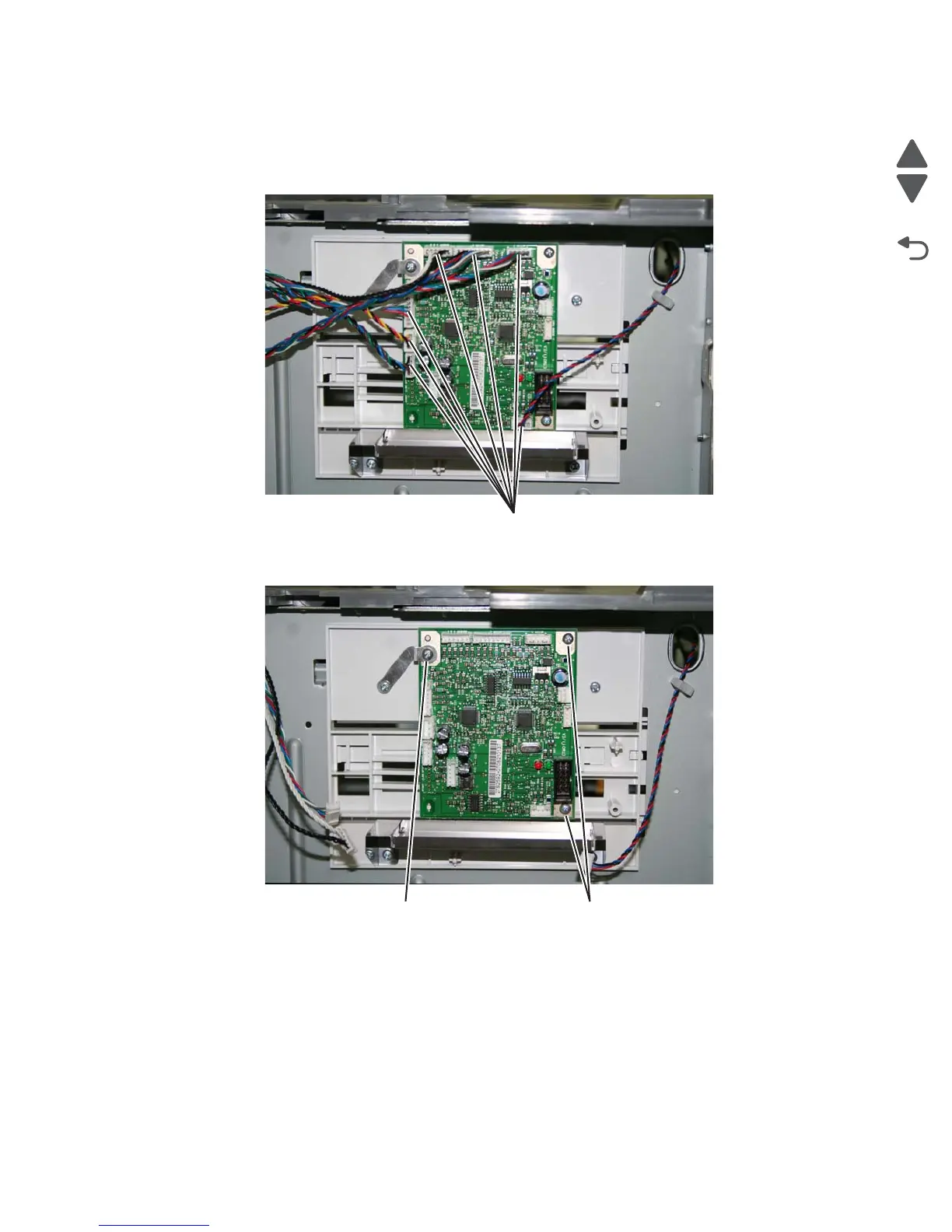

HCIT controller board assembly removal
1. Remove the HCIT right cover. See “HCIT right cover removal” on page 4-204.
2. Disconnect the seven connectors (A) from the HCIT controller board.
3. Remove the ground screw (B) from the HCIT controller board.
4. Remove the two screws (C) securing the HCIT controller board to the card mount option.
5. Remove the HCIT controller board.
A
B C
