Lexmark CS748de - HCIT Drawer Slide Assembly Removal; HCIT Elevator Motor with Sensor Removal

4-208 Service Manual
5026
Go Back
Previous
Next

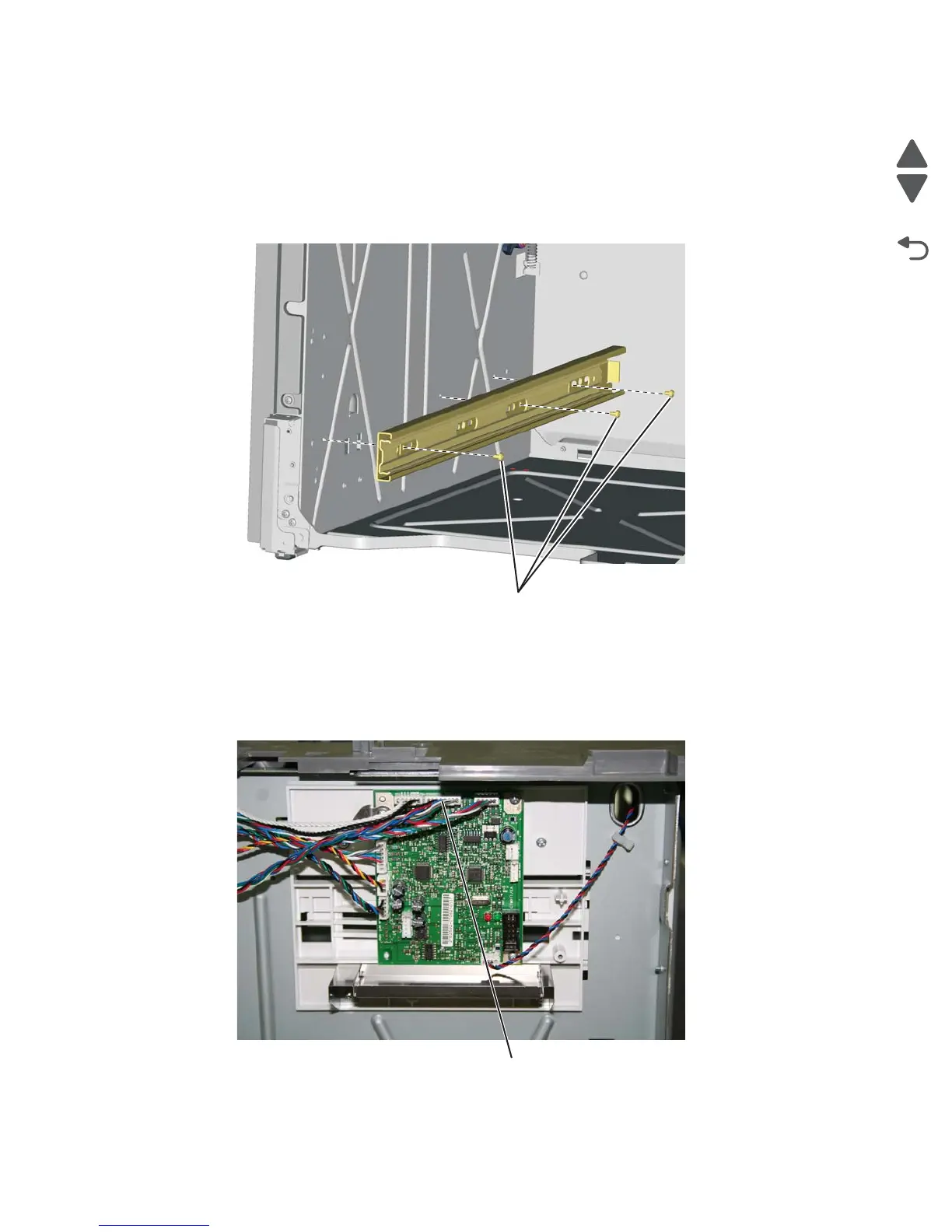

HCIT drawer slide assembly removal
The left and right drawer slide assemblies are the same, and only one is in a package. The instructions below
are for removing the left slide, but removing the right slide is similar.
1. Remove the HCIT media tray assembly. See “HCIT media tray assembly removal” on page 4-201.
2. Remove the three screws (A) securing the HCIT drawer slide to the side frame.
3. Remove the HCIT drawer slide.
HCIT elevator motor with sensor removal
1. Remove the HCIT right cover. See “HCIT right cover removal” on page 4-204.
2. Disconnect the connector (A) from the HCIT controller board.
A
A
