4-140 Service Manual
5026

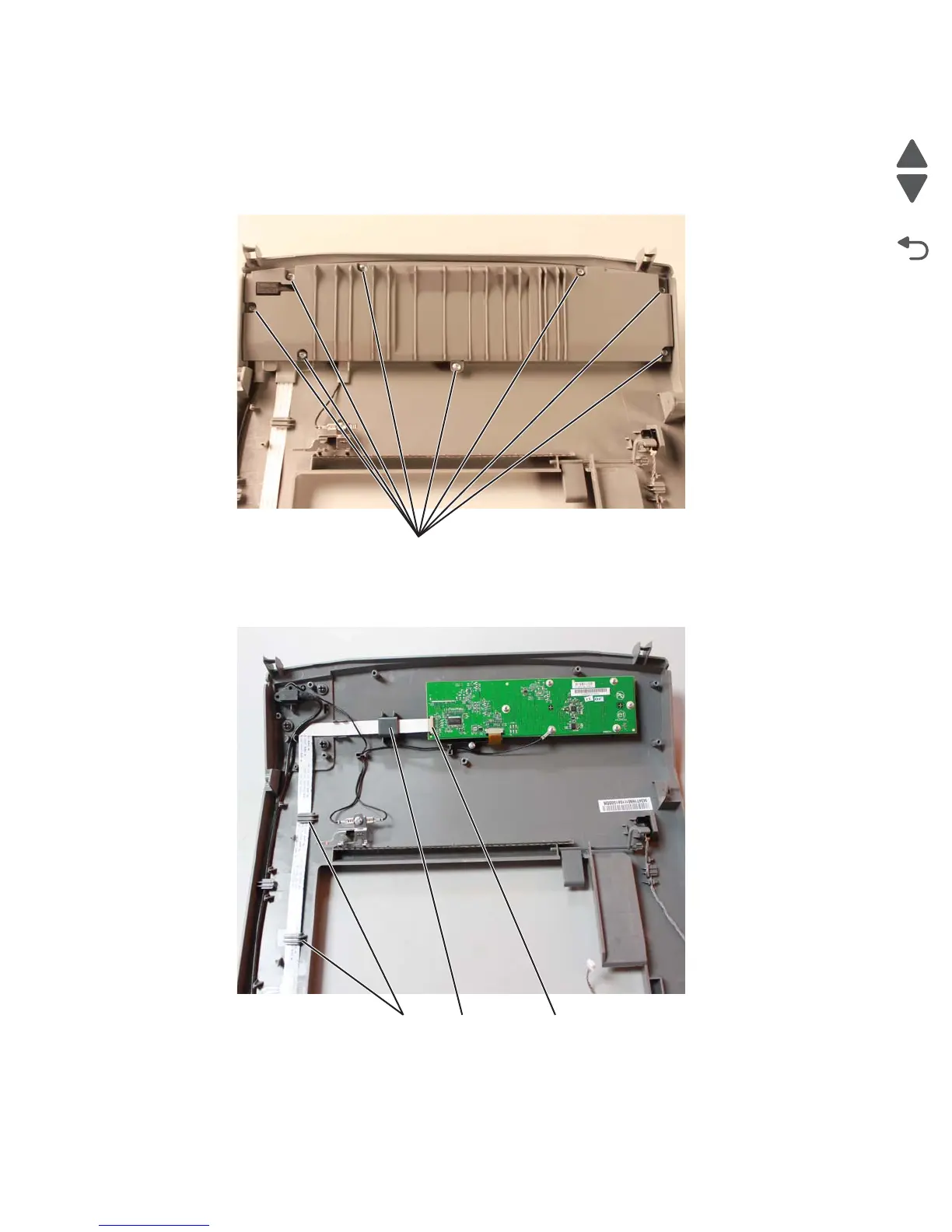

Operator panel cable removal
1. Remove the top access cover assembly. See “Top access cover assembly removal” on page 4-54.
2. Turn the top access cover assembly over.
3. Remove the eight screws (A), and remove the position guide cover.
4. Pull open the operator panel connector (B) and disconnect the operator panel cable from the operator
panel card.
5. Remove the operator panel cable from the toroid (C) and the two cable retainers (D).
Installation note: Make sure the contact pins on the cable are facing up when reconnecting the operator
panel cable to the connector.
