Lexmark CS748de - Wireless Network Card Removal

Repair information 4-199
5026
Go Back
Previous
Next
Wireless network card removal
1. Remove the rear frame cover. See “Rear frame cover removal” on page 4-47.

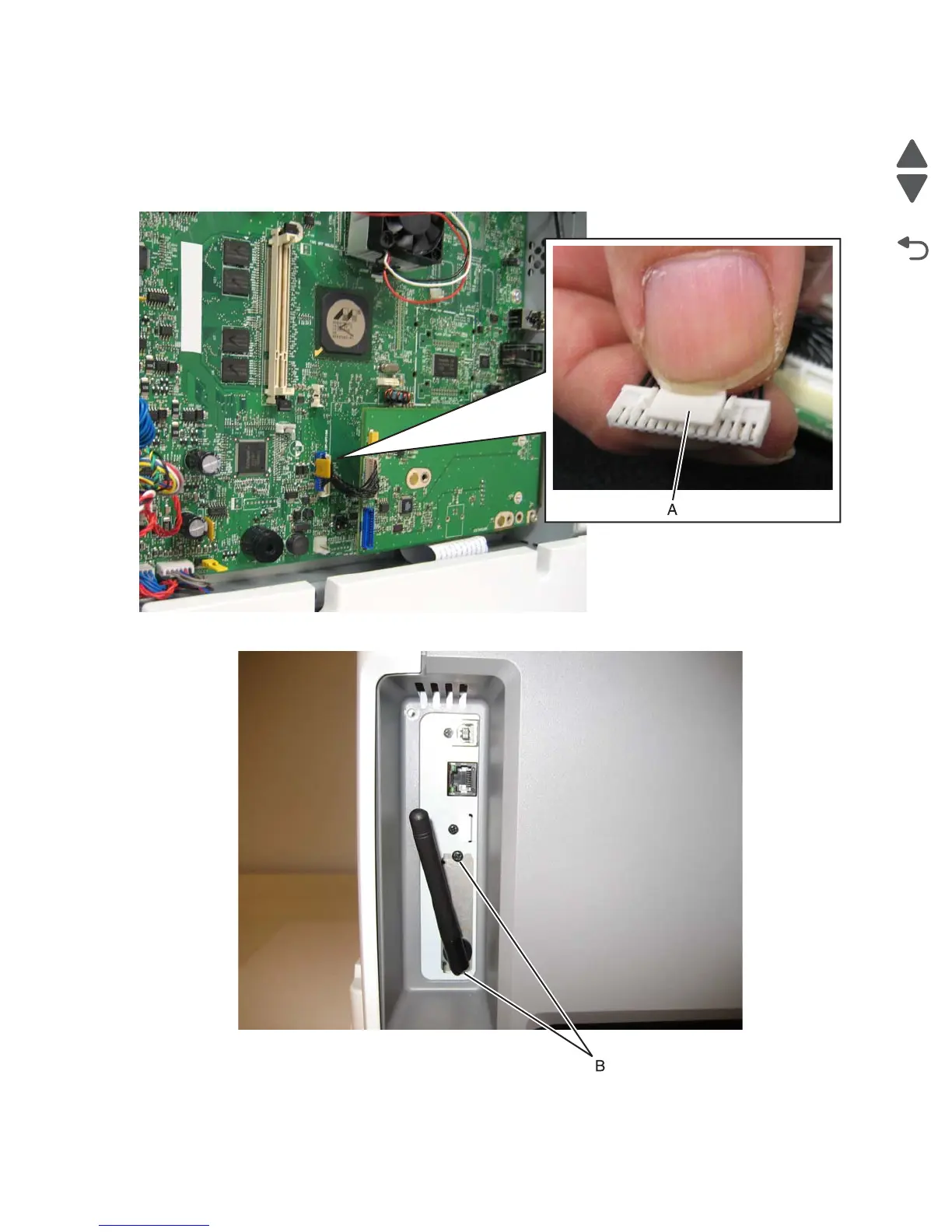

2. Disconnect the wireless cable from the system board at J5 (A), by squeezing the tabs at either end
together.
3. Remove the two screws (B) that secure the card into place.
