High-voltage power supply (HVPS) cable removal
1. Remove the rear upper cover. See “Rear upper cover removal” on page 4-50.

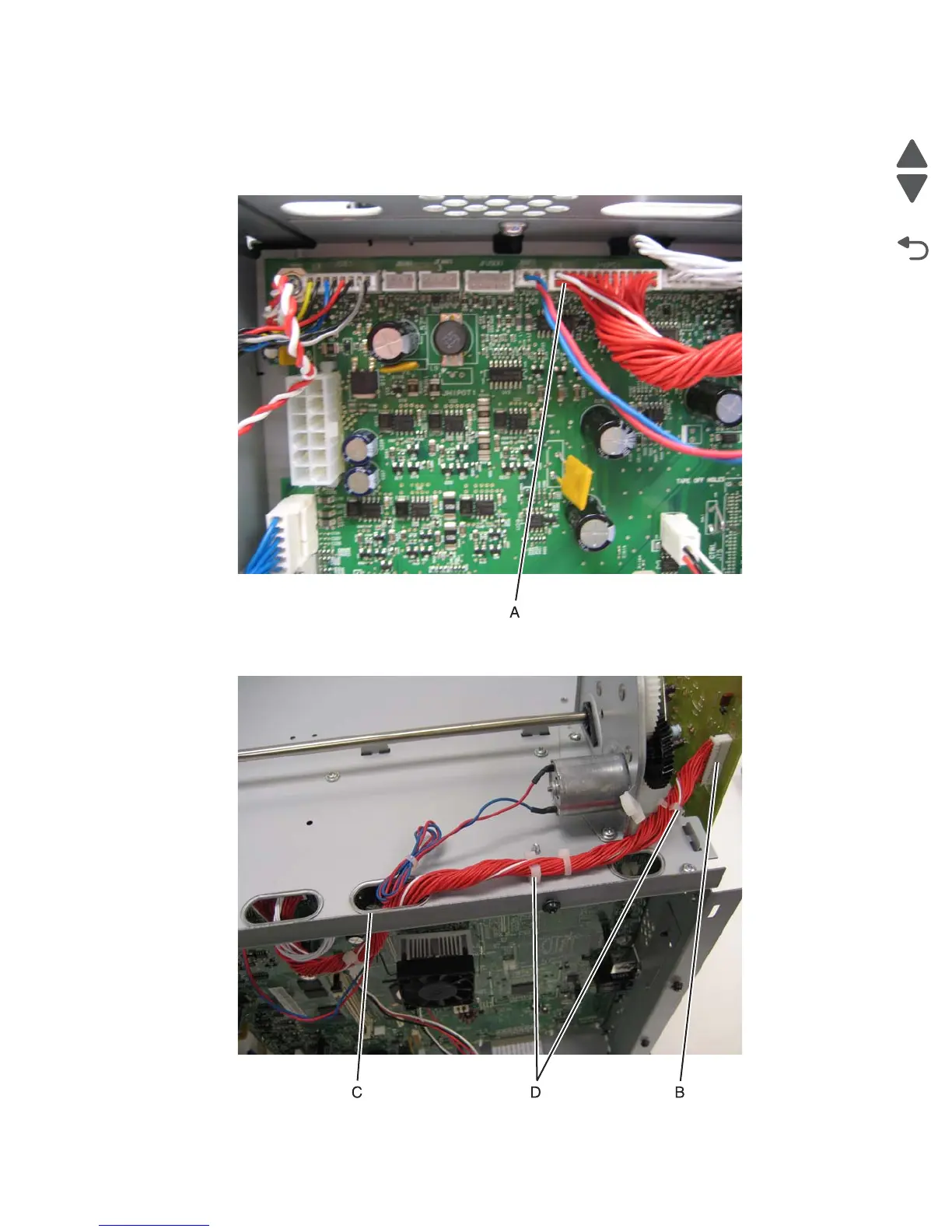

2. Disconnect the cable connector at JHVPS1 on the system board.
3. Disconnect the cable connector (B) from the HVPS.
4. Remove the cable from the hole through the frame (C), and from the two cable restraints (D).
