Rear left cover removal
1. Remove the left cover. See “Left cover removal” on page 4-31.

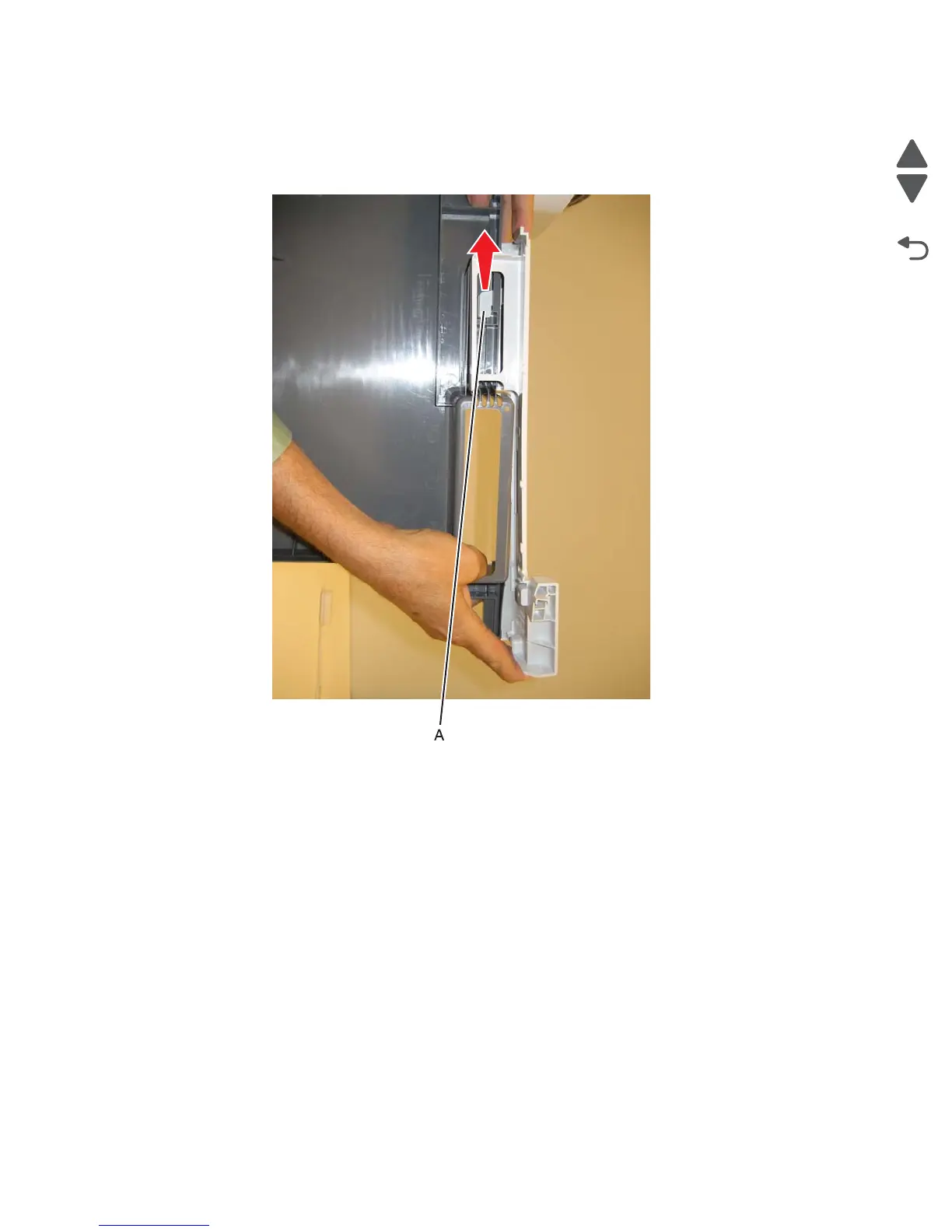

2. Separate the left cover and rear left cover by sliding the left rear cover as shown to disengage the latch (A).
