Repair information 4-181
5026
Transport cable removal
1. Remove the LVPS. See “Low-voltage power supply (LVPS) removal” on page 4-127.
2. Remove the transport belt assembly. Leave the photoconductor units in place. See “Transfer module
removal” on page 4-179.

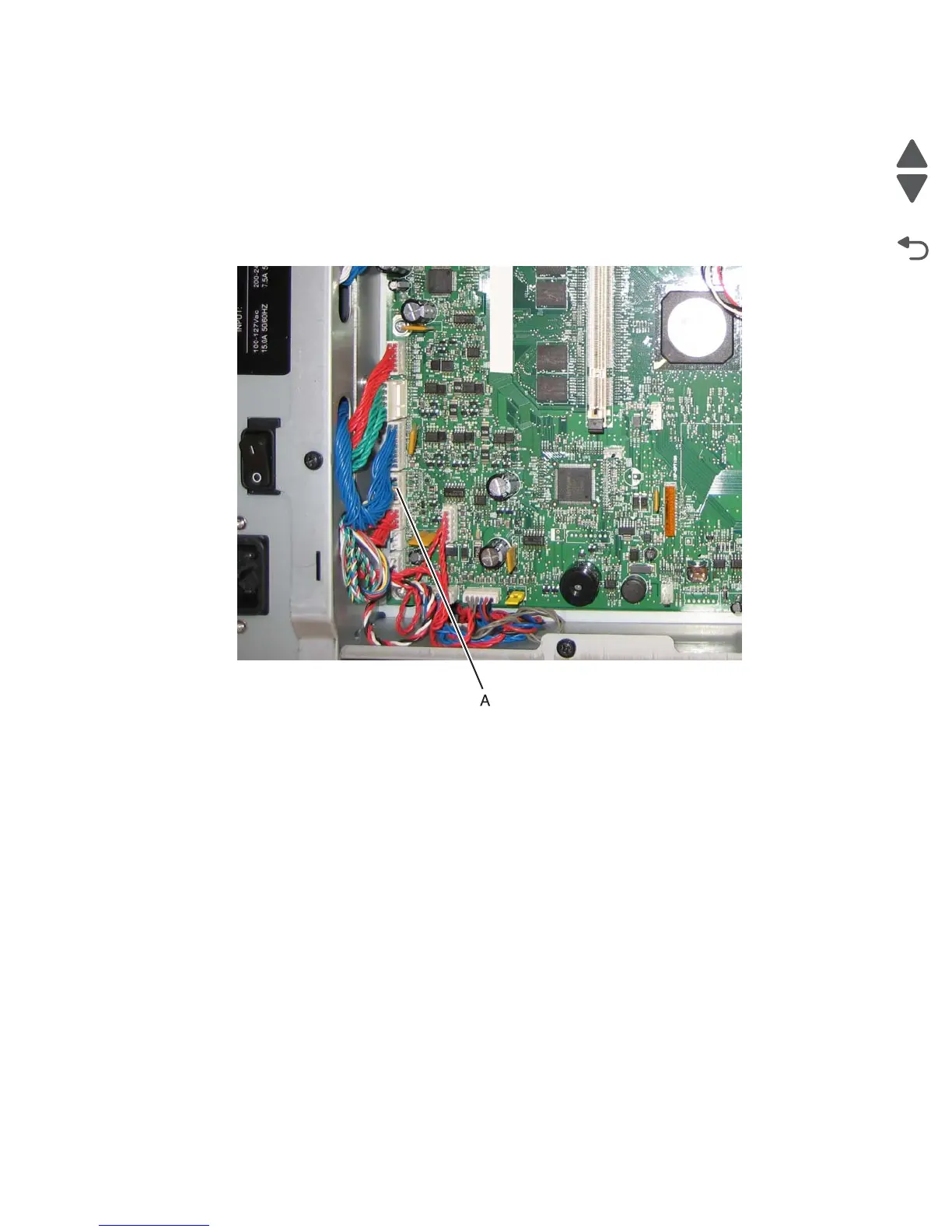

3. Disconnect the transport cable from the system board at JTPS1 connector (A).
Note: The cable connector on the system board end of the cable is smaller than the connector on the front
access door, and it may be easier to get that end through the openings.
